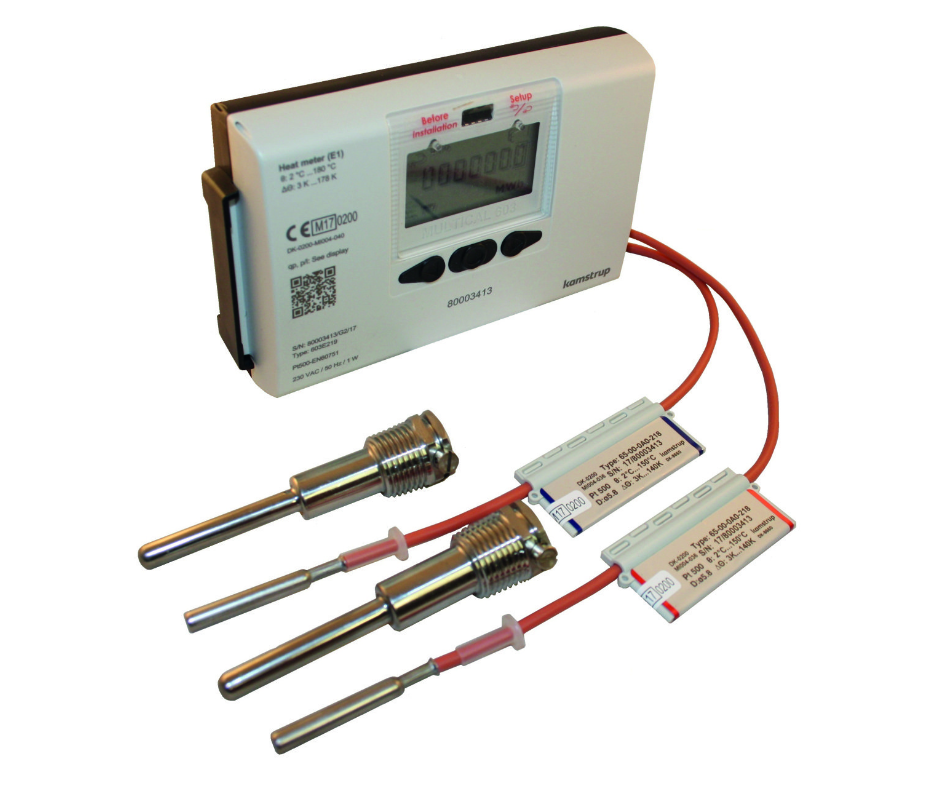

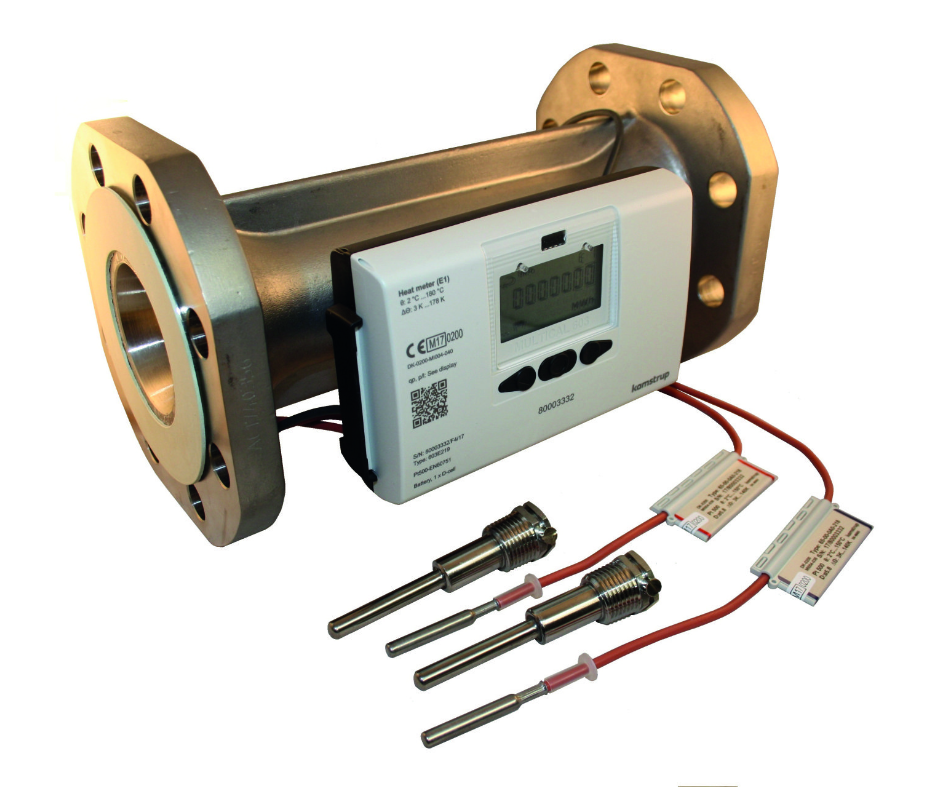

KAMSTRUP MULTICAL 403 & 603 ULTRASONIC ENERGY METERS

Multical 403 & 603 is a static heat meter, cooling meter or combined heating/cooling meter based on the ultrasonic principle.


FEATURES

  • MID Approved Class II
  • DN15-40 screwed, DN50-250 Flanged
  • M-Bus or Pulse as standard – please specify
  • Battery, 230v or 24v – please specify
  • Complete with 1.5m temperature sensors, pockets & connections
  • Heating version as standard, cooling available on request
  • Longer temperature sensors available on request – 3m, 5m, 10m
  • Other communication options available on request – Modbus, Bacnet etc.


ULTRAFLOW. 54 DN15-125 - Download Data Sheet

ULTRAFLOW® 54 DN150-300 - Download Data Sheet

Kamstrup Multical 403 & 603 Ultrasonic Energy Meters
Kamstrup Multical 403 & 603 Ultrasonic Energy Meters
Part Number Size (mm) Nom Flow qp(m3/h) Data Sheets
MC403/15/0.6 15 0.6 Download
MC403/15/1.5 15 1.5 Download
MC403/20/2.5 20 2.5 Download
MC403/25/3.5 25 3.5 Download
MC403/25/6 25 6 Download
MC403/40/10 40 10 Download
MC403/50/15 50 15 Download
Part Number Size (mm) Nom Flow qp(m3/h) Data Sheets
MC603/65/25 65 25 Download
MC603/80/40 80 40 Download
MC603/100/60 100 60 Download
MC603/125/100 125 100 Download
MC603/150/150 150 150 Download
MC603/200/400 200 400 Download
MC603/250/600 250 600 Download
