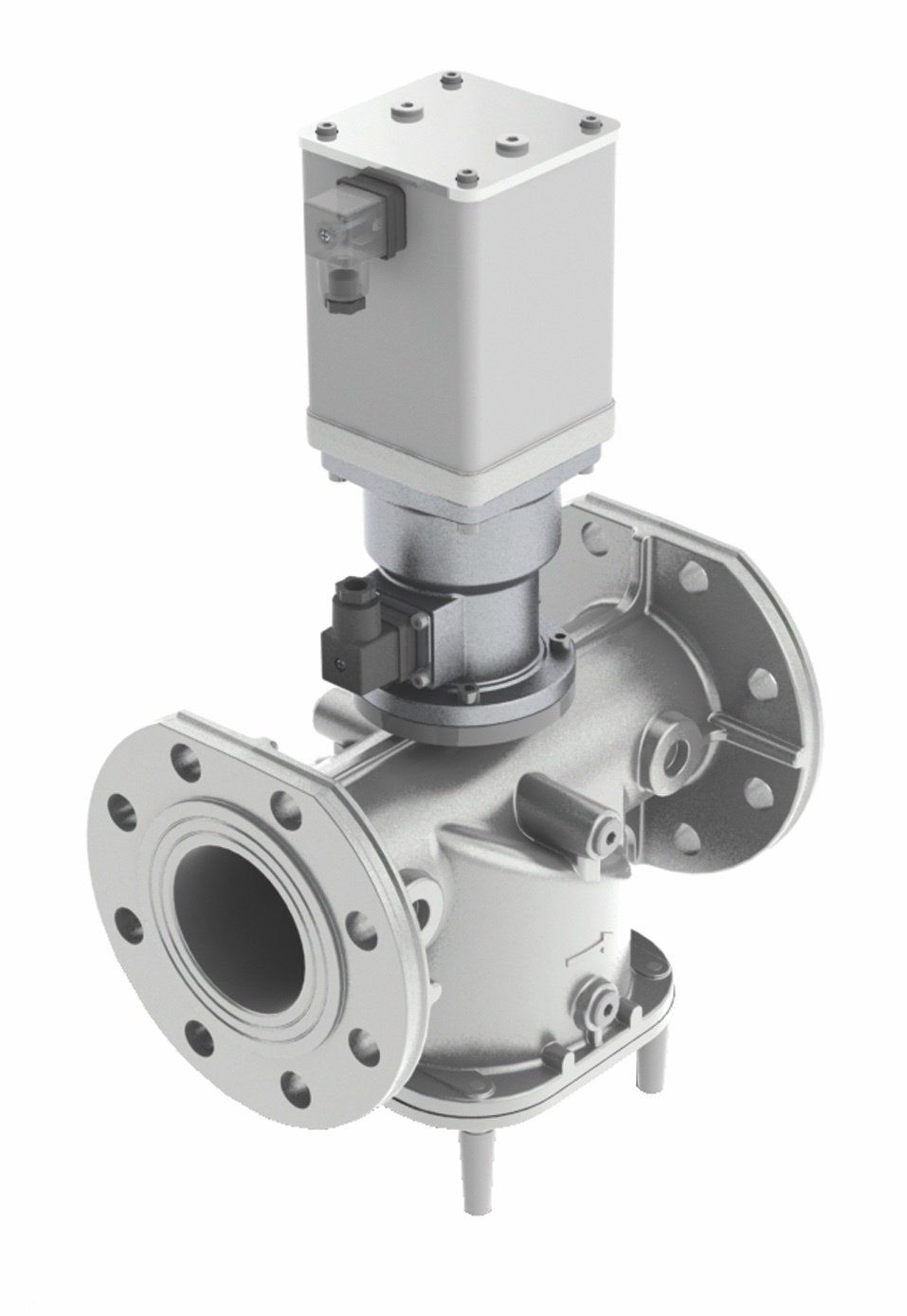

ELEKTROGAS VMH ELECTRO HYDRAULIC GAS VALVES

The VMH type valve is a safety shut off valve with hydraulic actuator. This type of device is suitable for air/gas to meet class A EN161 approval*.


FEATURES

  • Protection class – IP65
  • 230v as standard, (other voltages available on request)
  • Aluminium body
  • Fitted with CPI as standard
  • DN250 & DN300 – CE approved & complies to Pressure Equipment Directive (PED)*
ELEKTROGAS VMH ELECTRO HYDRAULIC GAS VALVES
Part Number Size (“) Pressure Range (mbar) Data Sheets
VMH7 0 - 1600 Download
VMH8 3 0 - 1600 Download
VMH9 4 0 - 1300 Download
VMH93 5 0 - 500 Download
VMH95 6 0 - 500 Download
VMH98 8 0 - 200 Download
VMH910* 10 0 - 1300 Download
VMH912* 12 0 - 600 Download
