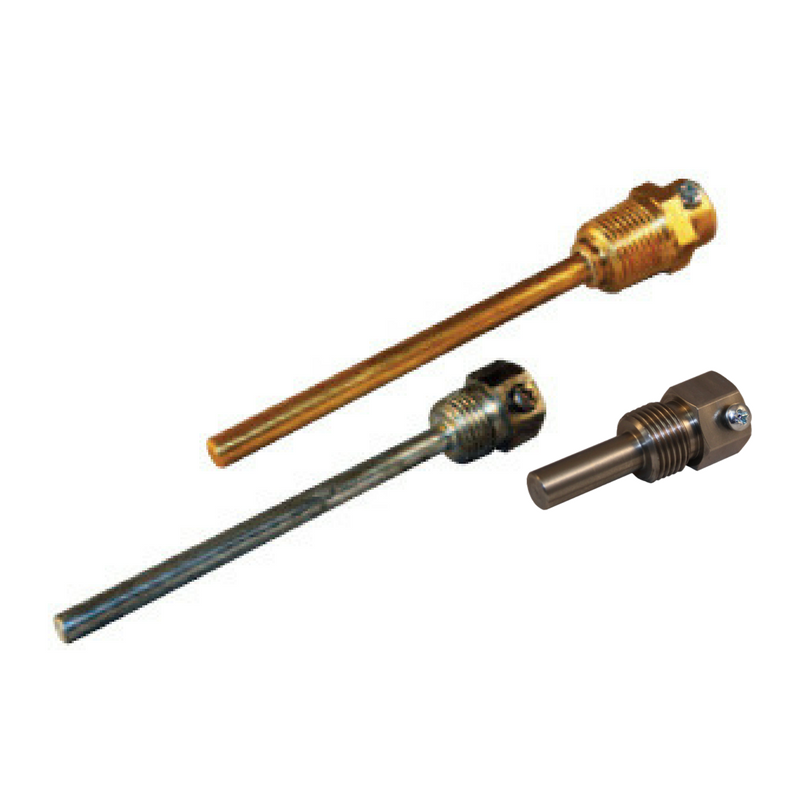

IMMERSION SENSOR POCKETS

Pockets are available in both brass and 316 stainless steel. Brass pockets are recommended for use with standard LPHW and DHWS systems whilst stainless steel variants can be used on high temperature and pressure installations (including steam) and are also recommended for chilled water and other low temperature applications.

FEATURES

• 1⁄2” BSP Thread For Direct Installation
• Brass and Stainless Steel Variants

TEMPERATURE RANGE: -20 DEG C TO +110 DEG C

PRESSURE: 10 BAR

DIMENSIONS: 150mm x 8mm x ½” BSP
