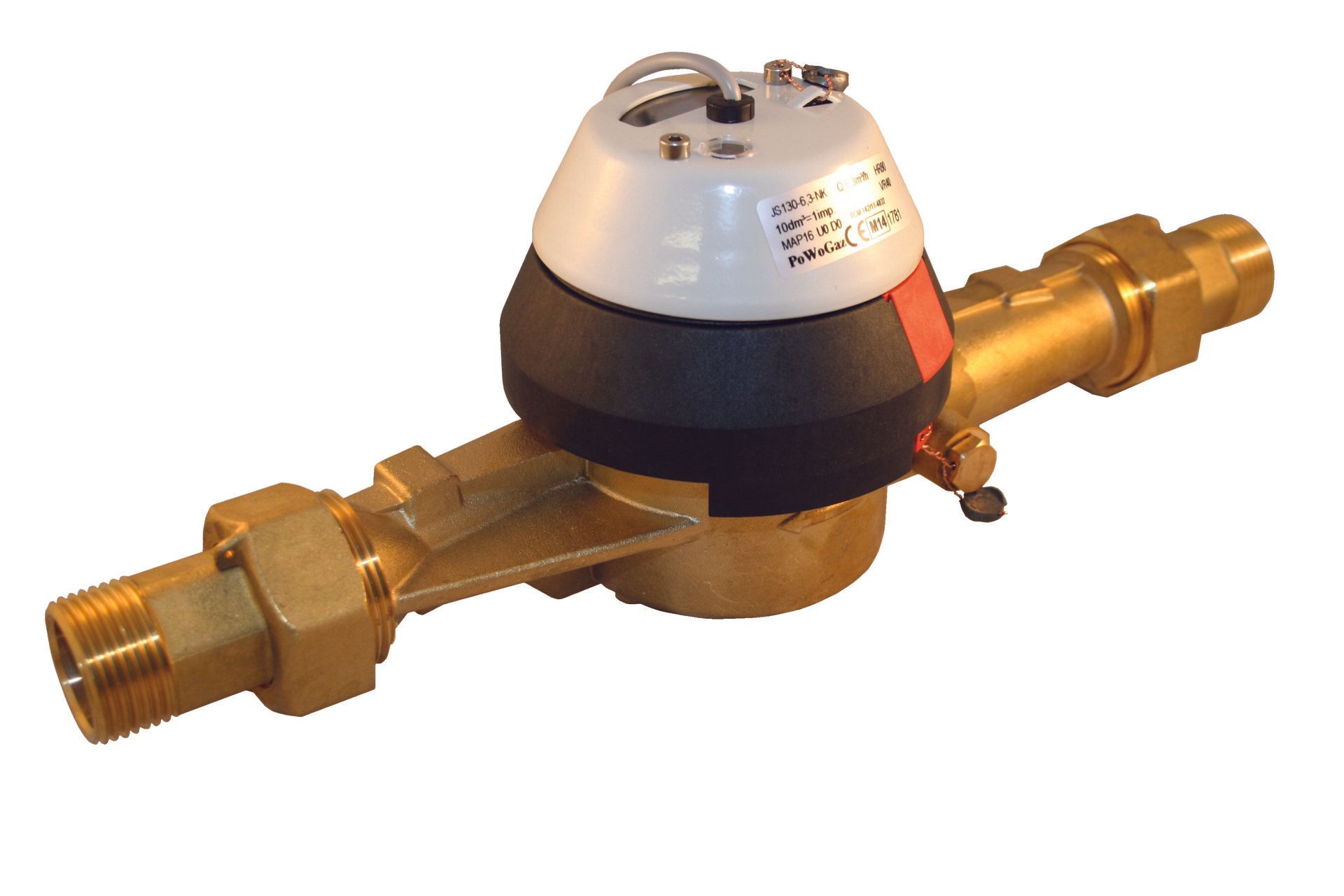

SCREWED MTHW HOT WATER METERS C/W PULSE OUTPUT

Water supply systems for cold water up to 30°C, or water up to 50°C and hot water up to 130°C for the family houses and, public buildings.



The water meter structure allows for installing it in both horizontal position with counter set upwards (H) or sideways (V), and in vertical position (V).


Rotating counter allows easy reading from the meter. As part of the measuring system, it allows to measure the water consumption in buildings.



M.I.D. Approved

SCREWED MTHW HOT WATER METERS C/W PULSE OUTPUT
Part Number Size (”) Constant Flow (m3/h) Max Flow (m3/h) Data Sheets
JS130 NK 6.3 1 6.3 7.875 Download
JS130 NK 10 1 1⁄4 10 12.5 Download
JS130 NK 16 1 1⁄2 16 20 Download
