AXIO NEW PRODUCTS

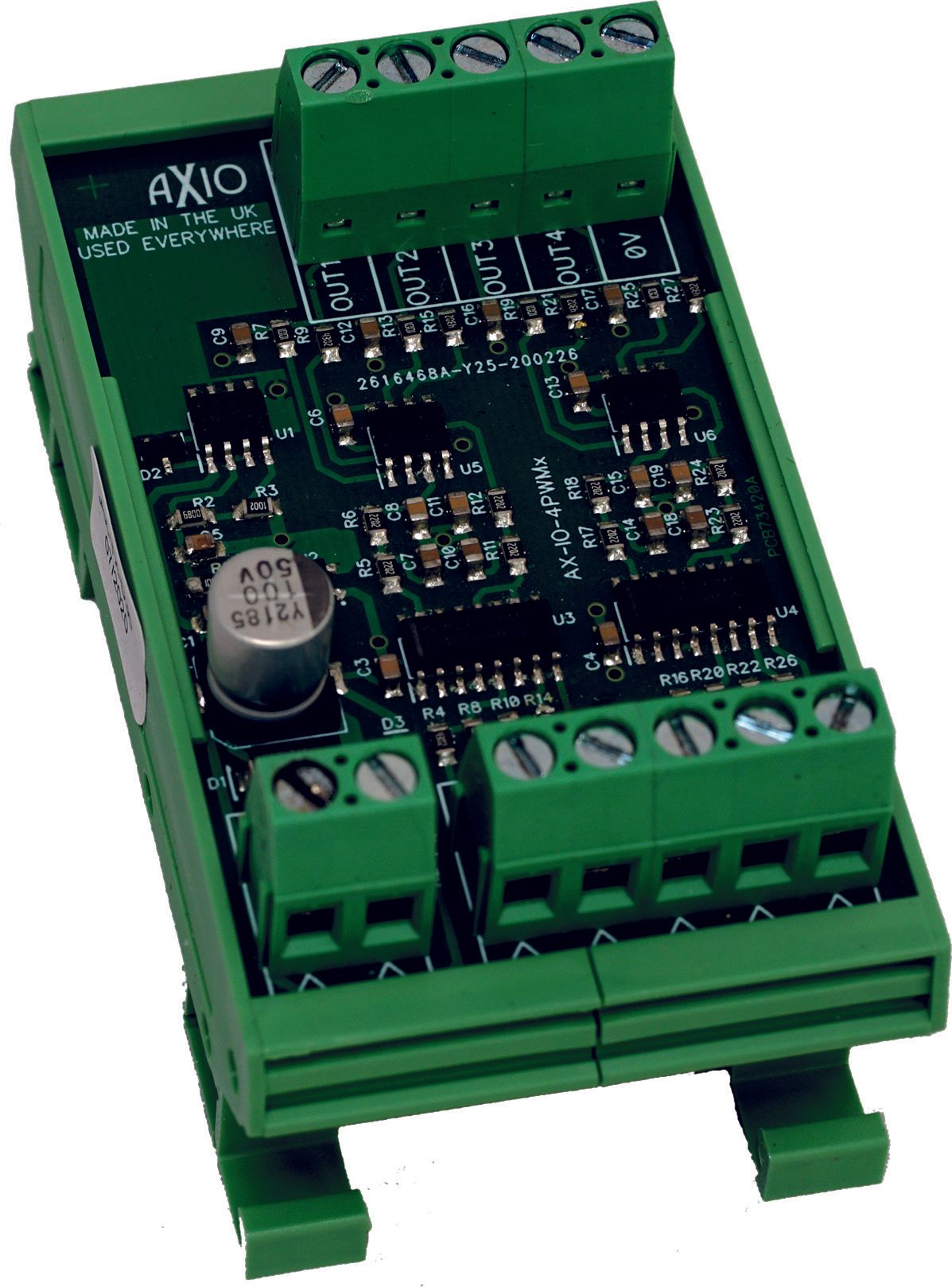

AX-IO-4PWM10

4 CHANNEL PWM TO VOLTAGE CONVERTER

The AX-IO-4PWM10 is a 4 channel analogue interface module for converting PWM signals to Voltage output. The output signal is proportional to the input mark-space ratio.

The unit is supplied in a DIN rail carrier suitable for mounting on TS35 section DIN rail and features high quality rising clamp terminals for ease of connection.

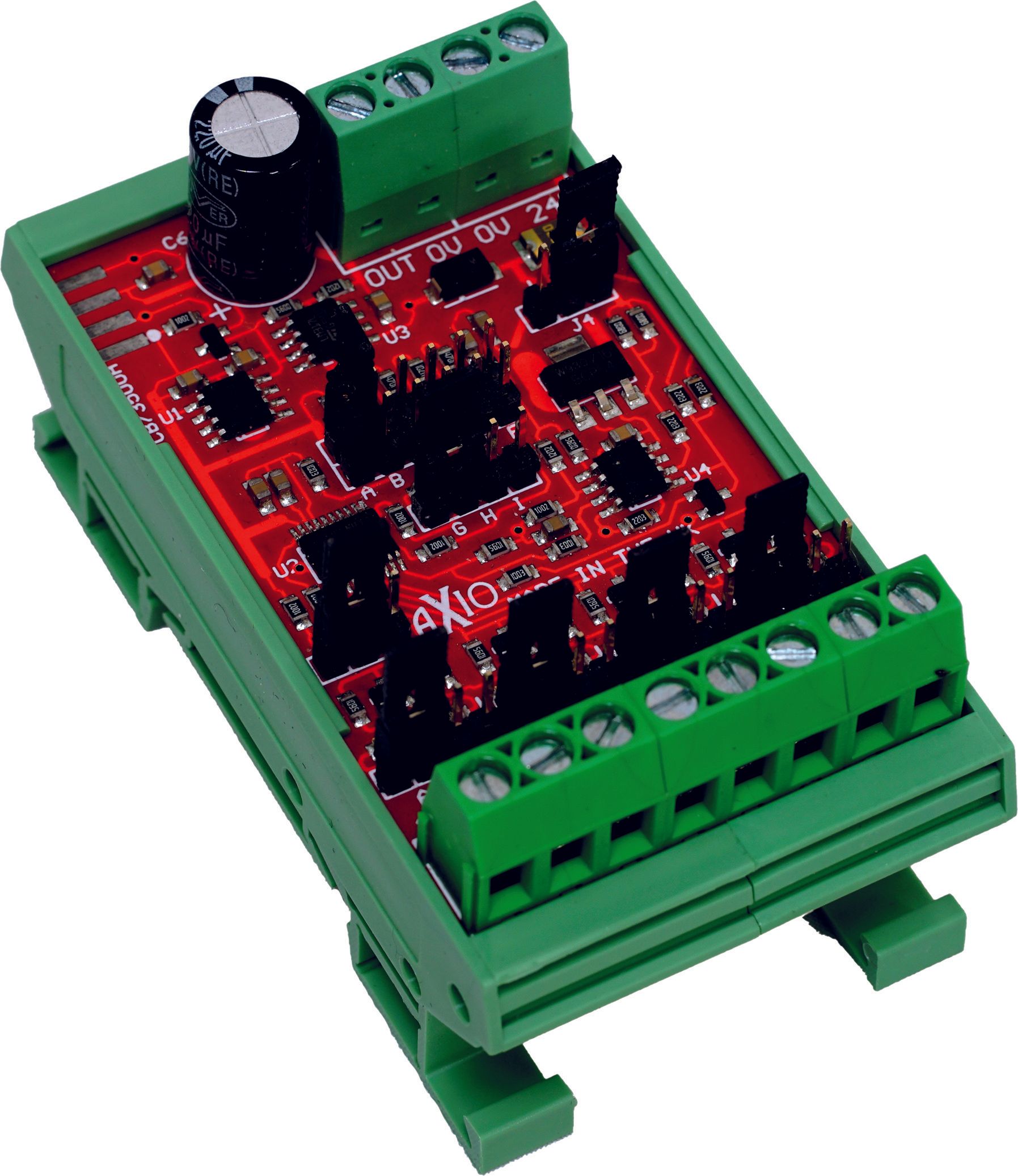

AX-DINT4

FOUR CHANNEL DIGITAL INPUT INTEGRATOR

The AX-DINT4 integrates four digital signals or four 24V ac/dc inputsinto a single analogue output. The analogue output is proportional to the number of active inputs.

Additionally, jumpers are fitted to allow each input to be manually overridden for commissioning and testing purposes.

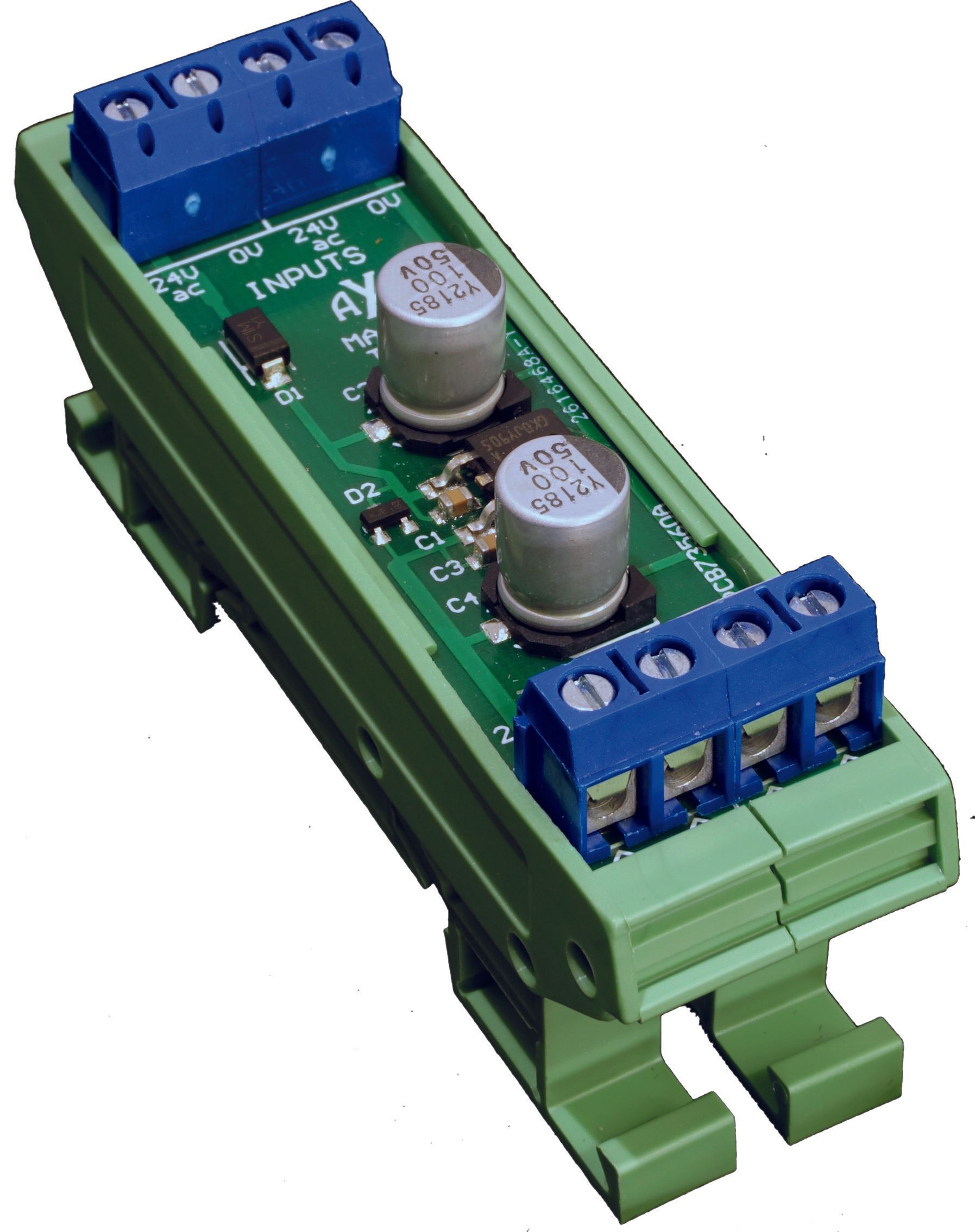

AX-PSU-2424-LP

24VAC TO 24VDC POWER SUPPLY

The AXIO AX-PSU-2424-LP provides a regulated 24Vdc supply from a 24Vac input. The module features two 24Vac inputs, one for supply and a through connection power other equipment.

The Power Supply is designed to provide DC for 2 4-20mA loop-powered devices but can power low current 24Vdc peripherals. The module also features output short-circuit protection. Supplied in a DIN rail carrier for easy mounting on TS35 section DIN rail.

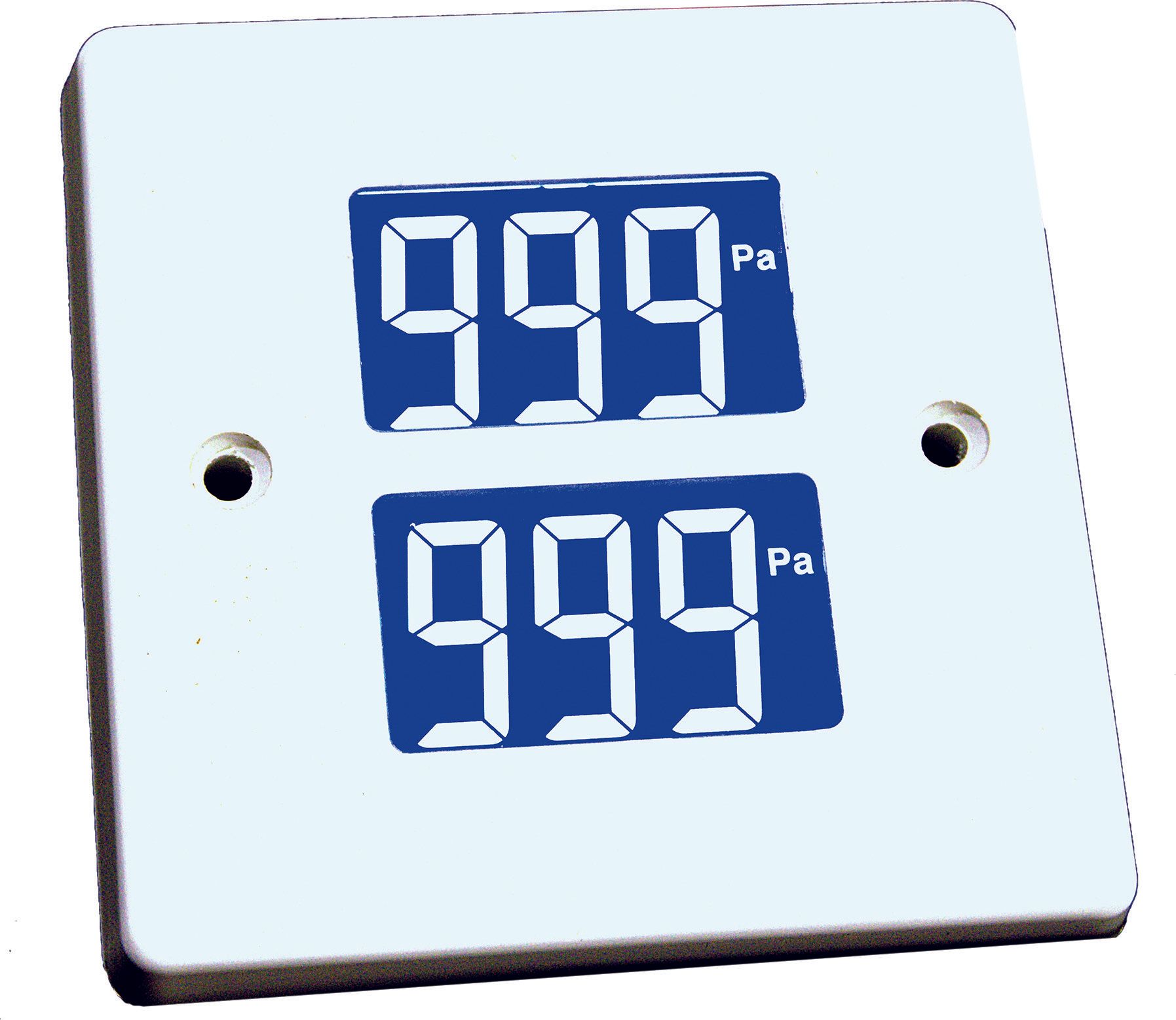

AX-LCD-2

DUAL LCD DISPLAY ON SINGLE GANG PLATE

The AX-LCD-2 feature two high-contrast, blue backlit liquid crystal displays with white text. Various options are available such that the 0-10V/4-20mA input signal can be used to display a variety of ranges and units of measurement. The displays fit a standard single gang back-box. Range and Unit on the two displays can be independently configured using push button switches. The voltage/current selection is made using jumpers.

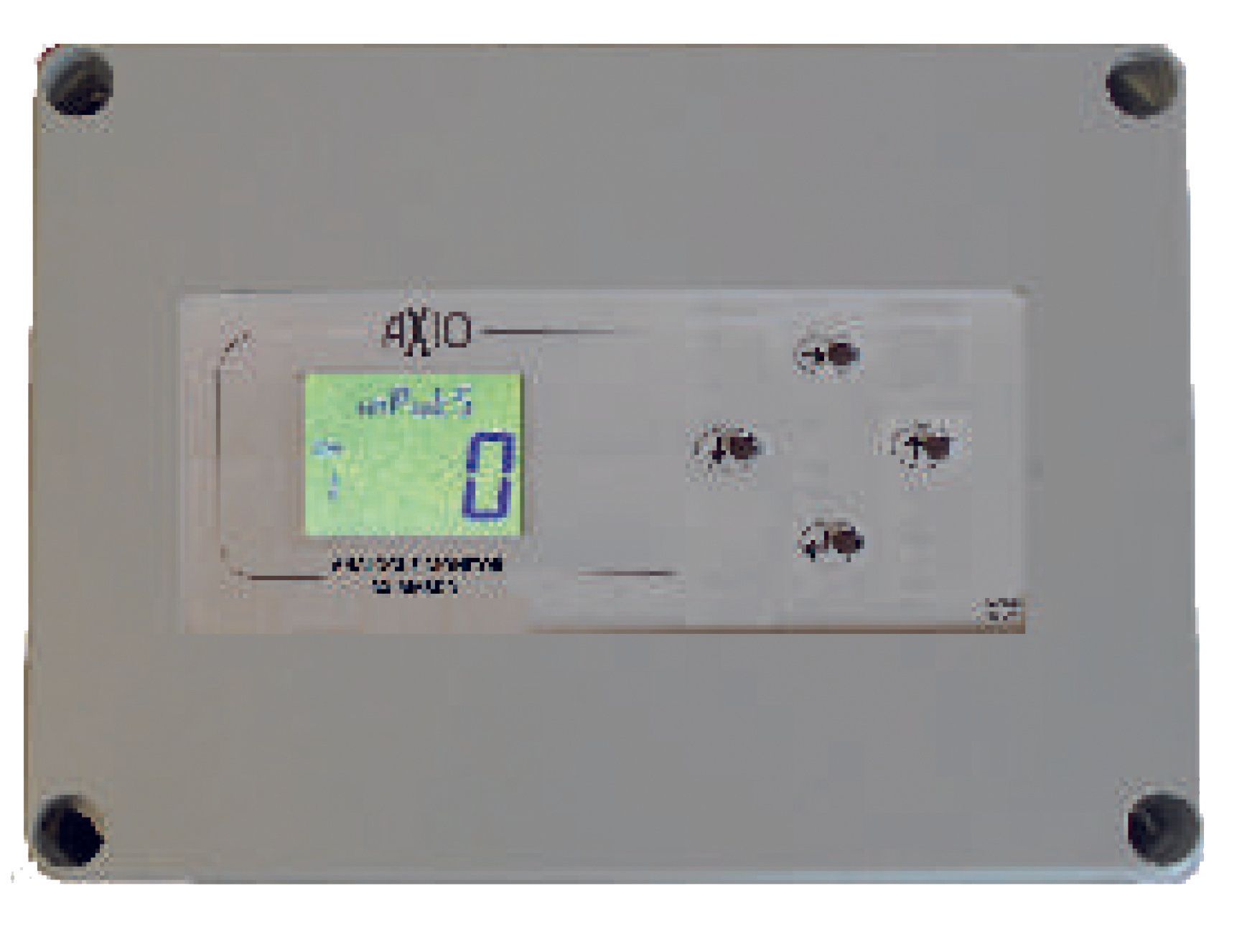

AX-AM8DR

ANALOGUE MONITOR WITH DISPLAY AND RELAYS

The AX-AM8DR is a cost effective solution to display and monitor a selection of 10V or 20mA analogue signals, loop power is provided for current sensors. Each of the 8 input signals is individually scaled before being displayed, allowing a mixed combination of sensor ranges. Each input has a limit relay with independent setpoints, reversing the on and off setpoints inverts the relay action. The limit relays are also combined to drive a common alarm relay to reduce wiring.

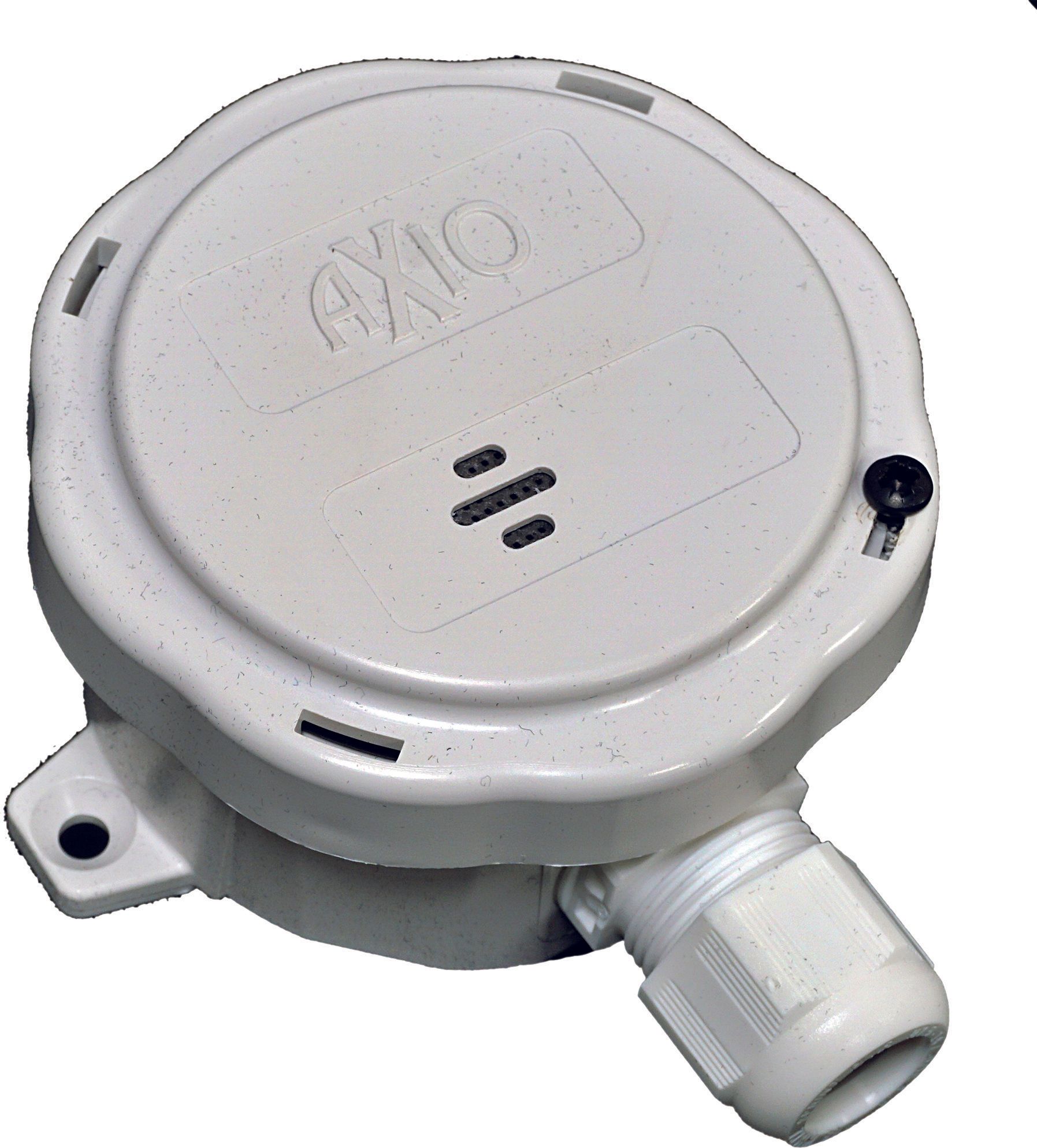

AX-GS-ND-V

NITROGEN DIOXIDE VOLTAGE TRANSMITTER IP65, WITH OPTIONAL DISPLAY

The AX-GS-ND-V Nitrogen Dioxide Voltage Transmitter provides a linear output signal for NO2 levels from 0-10ppm. The output voltage is configurable for either 0-5Vdc, 2-10Vdc or 0-10Vdc. Options include relay(s) with set trip points and an LCD display. The sensor module uses a plug-in connector, making for easy in-the-field replacement.

The unit can be mounted with the cable gland entry pointing up or down

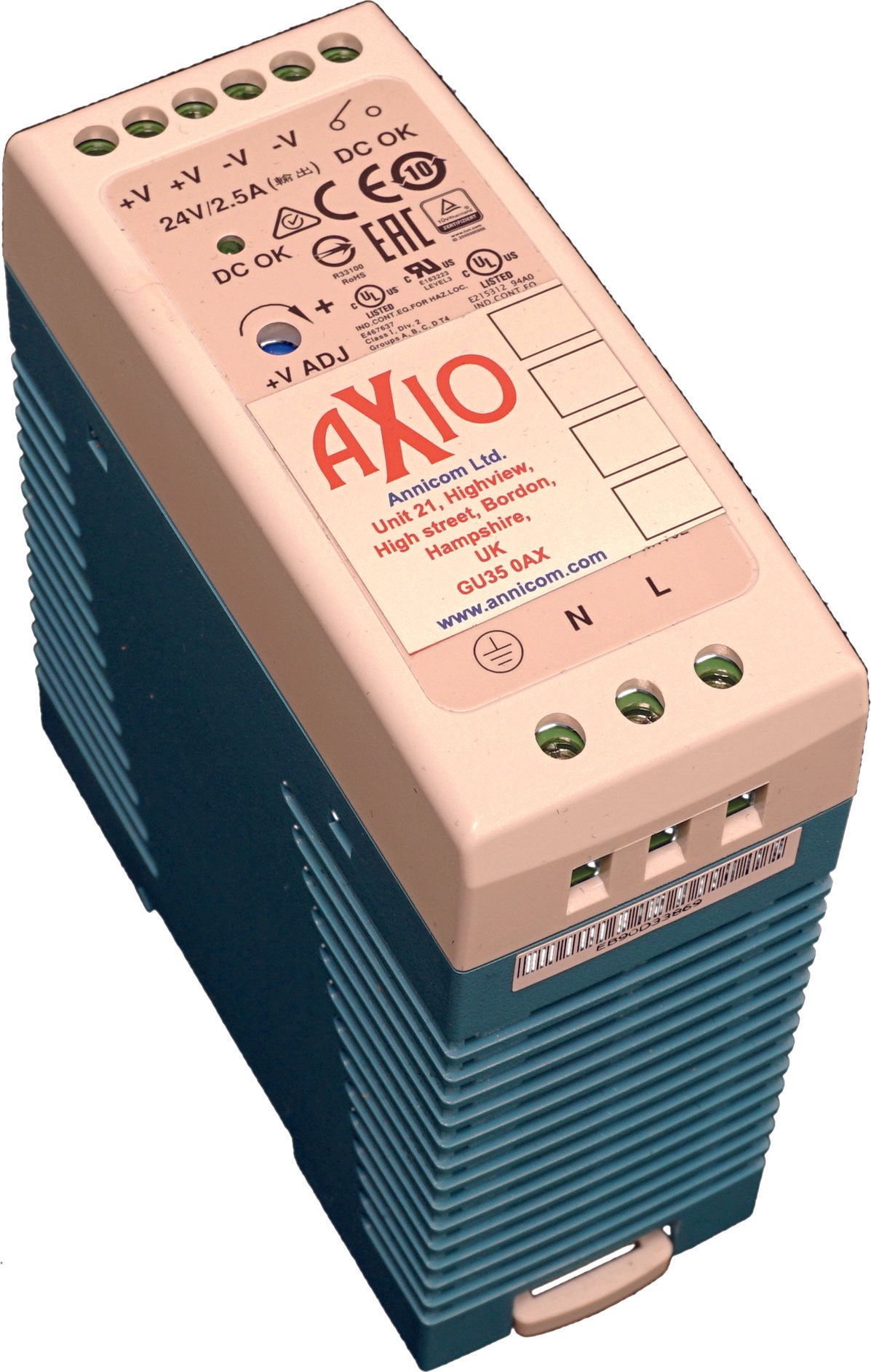

AX-PS-DR-60

230VAC TO 12/24VDC POWER SUPPLY

The AX-PS-DR-60 Power Supply is a cost effective, ultra slim unit providing a regulated 12 or 24Vdc output from an 85 to 264Vac input. The power supply is designed to provide 12/24Vac to power the Axio range of DIN Rail Modules, but has many other uses where a cost effective DC supply is required. The AX-PS-DR-60 features short circuit, over load & over voltage and is designed for mounting on TS35 section DIN rail.

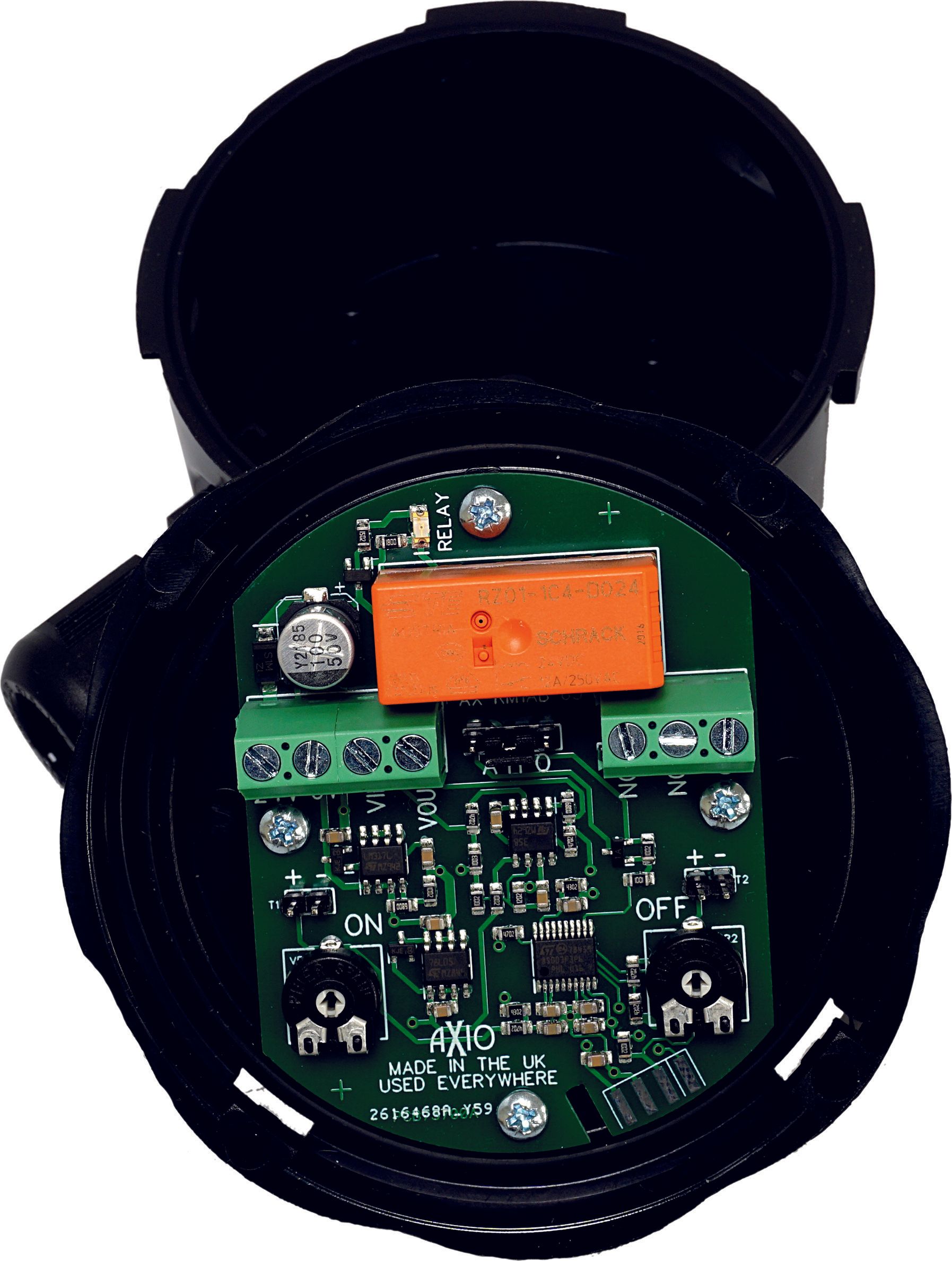

AX-RM1AB-65

ADJUSTABLE SINGLE RELAY MODULE WITH BUFFERED OUTPUT

The Axio AX-RM1AB-65 module provides a SPCO relay output from a 0 to 10 volt input signal. The relay switch on and switch off points are adjustable using the onboard presets. The AX-RM1AB also provides a buffered slave 0 to 10 volt output signal to drive other modules etc. An AUTO/ON (HAND)/OFF jumper link is provided for commissioning or manual override purposes. The unit can be powered from 24Vdc or 24Vac. The AXRM1AB-65 is supplied in an IP65 enclosure and features high quality rising clamp terminals for ease of connection.

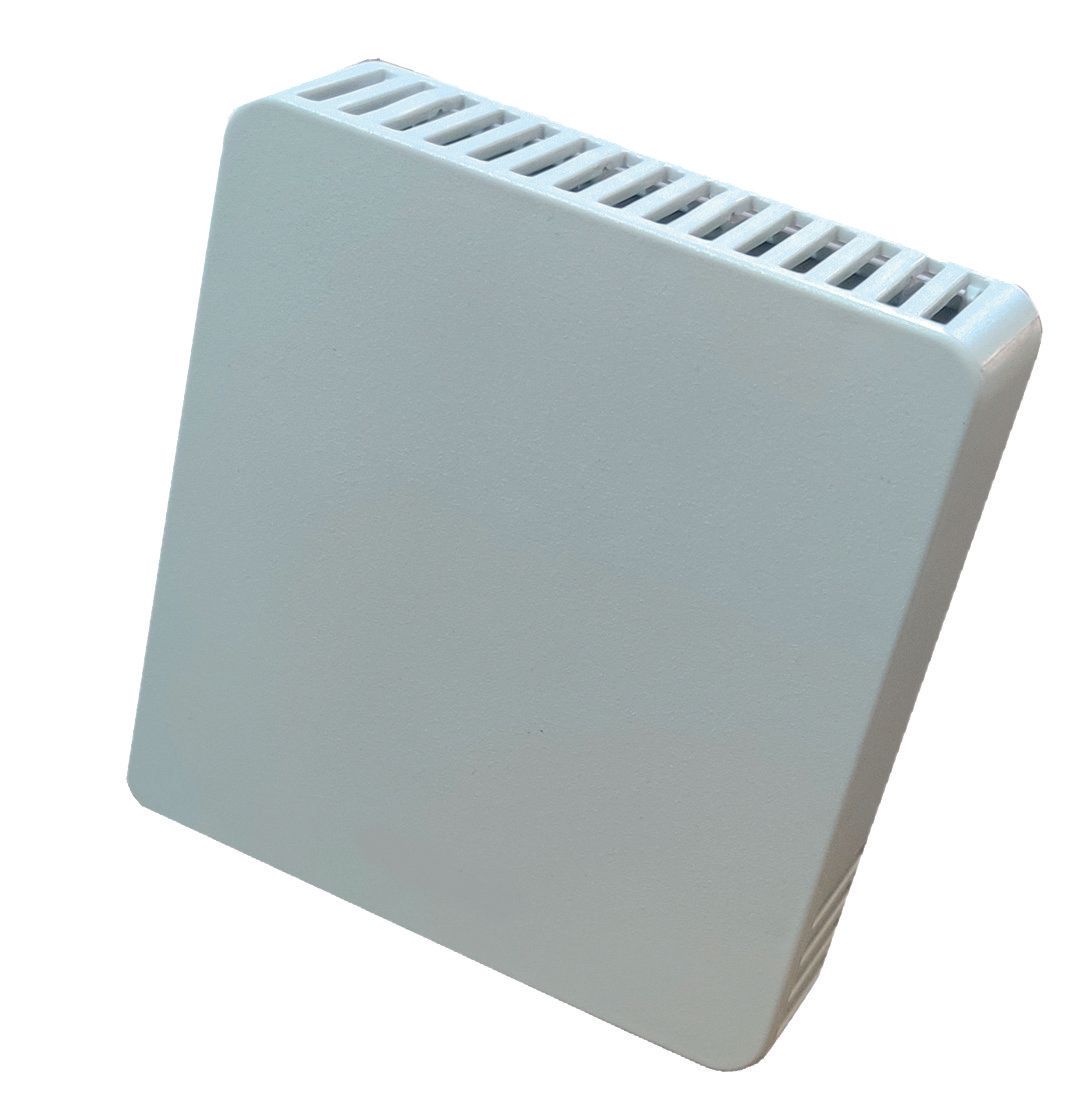

AX-AQM-V

AIR QUALITY MONITOR

The AX-AQM-V Air quality sensor monitors air purity with MOS sensor technology. The unit monitors the occupancy in a room by sensing the Volatile Organic Compounds (VOCs) which causes discomfort to humans. The reading is converted to CO2 equivalent, which is the amount of VOCs with the same global warming potential of CO2, and provides a linear analogue output of 0-5V/0-10V/2-10Vdc depending on the selection.

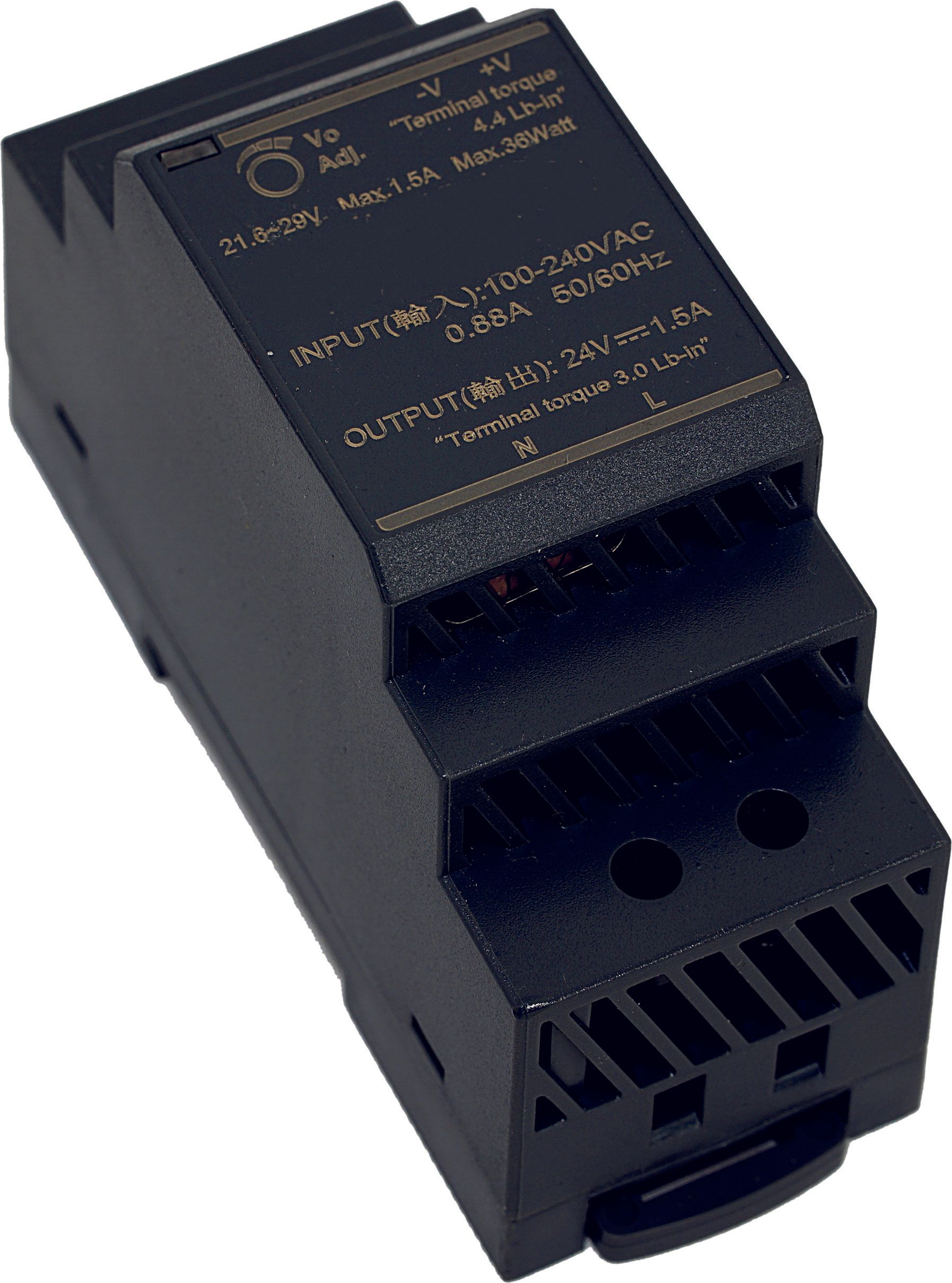

AX-DR-30

230VAC TO 12/24VDC POWER SUPPLY

The AX-DR-30 Power Supply is a cost effective, ultra slim unit providing a regulated 12 or 24Vdc output from an 85 to 264Vac input. The power supply is designed to provide 12/24Vac to power the Axio range of DIN Rail Modules, but has many other uses where a cost effective DC supply is required. The AX-PS-DR-30 features short circuit, over load & over voltage and is designed for mounting on TS35 section DIN rail.

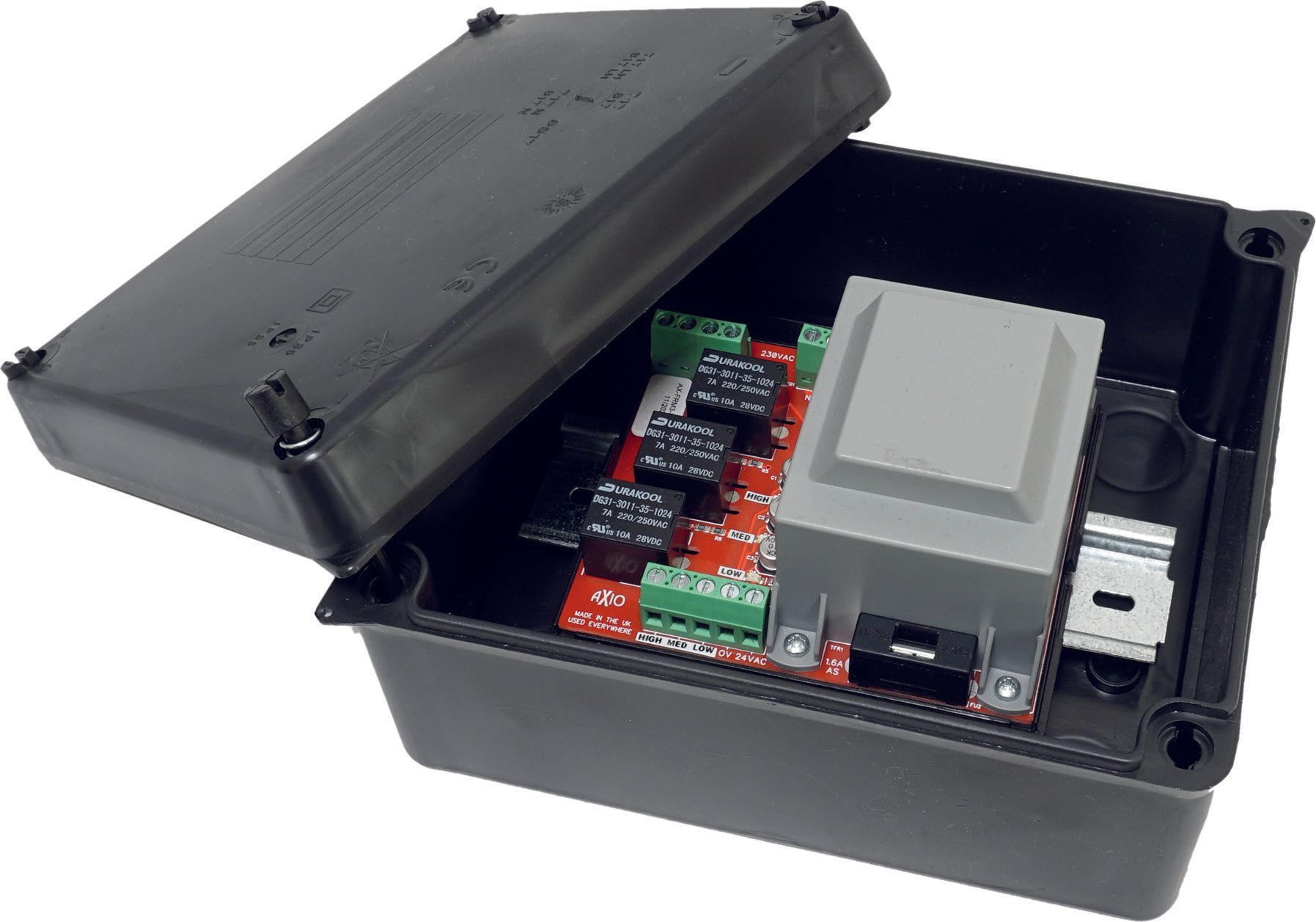

AX-FRM3-D30ET

3 FAN SPEED RELAY MODULE WITH 230VAC/24VAC TRANSFORMER

The AX-FRM3-D30ET is a cost effective, DIN Rail mounted module that provides high capacity, interlocked fan speed switching relays with an integrated 24Vac transformer. The relays can switch up to 6 Amps at 250Vac. The module can be used to change the speeds on fan motors with multi-tapped windings and also transformer speed controlled motors. The transformer is fitted with fuses on both the input and output; no external fuses are required. The AX-FRM3-D30ET also features high-quality rising clamp terminals and is supplied on a TS35 DIN rail carrier for rapid installation.
