AXIO THYRISTOR CONTROLLERS
The Axio range of power controllers are designed to provide continuously adjustable control of electric heating loads from a BMS controller or similar. Applications include; electric heating coils, heating cables and electric furnaces.
FEATURES
- 0-10vdc control input
- LED indication
- Auto reset over temperature protection
- PWM control
| Part Number | Size (kW) | No of Phases | DIN Rail Mounted | Data Sheets |
|---|---|---|---|---|

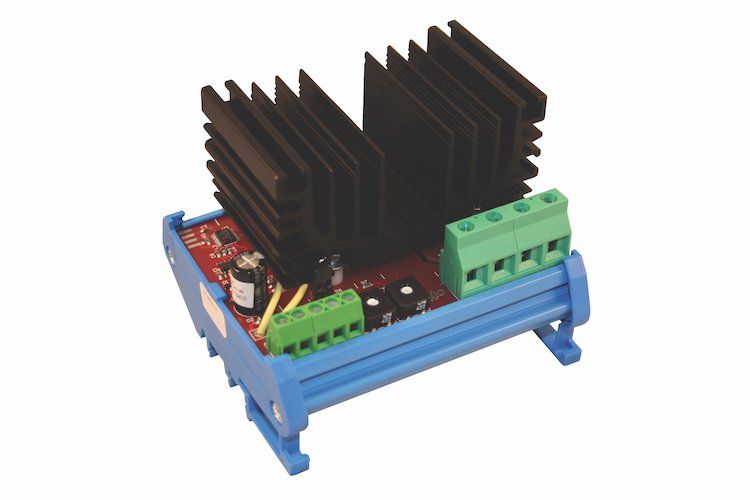

| AX-MPR1-2 | 2 | 1 | YES | Download |
| AX-MPR1-4 | 4 | 1 | YES | Download |
| AX-MPR1-6 | 6 | 1 | YES | Download |
| AX-MPR1-9 | 9 | 1 | YES | Download |

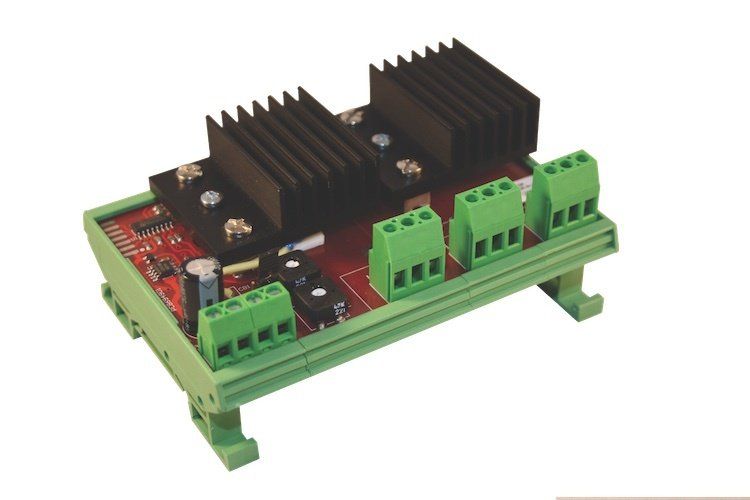

| AX-MPR3-6 | 6 | 3 | YES | Download |
| AX-MP3-12 | 12 | 3 | YES | Download |
| AX-MP3-18 | 18 | 3 | 6 | Download |

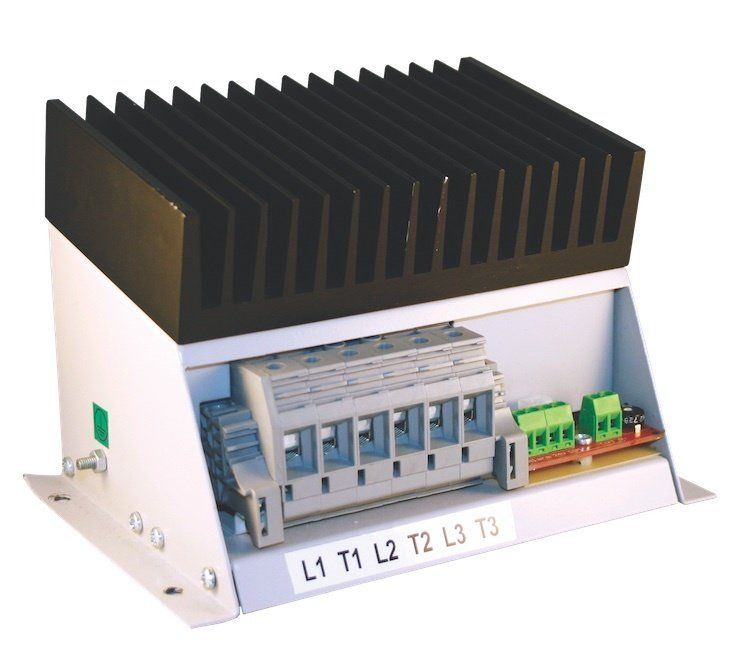

| AX-PPR3-27 | 27 | 3 | NO | Download |
| AX-PPR3-36 | 36 | 3 | NO | Download |
| AX-PPR3-54 | 54 | 3 | NO | Download |
| AX-PPR3-72 | 72 | 3 | NO | Download |
| AX-PPR3-105 | 105 | 3 | NO | Download |
