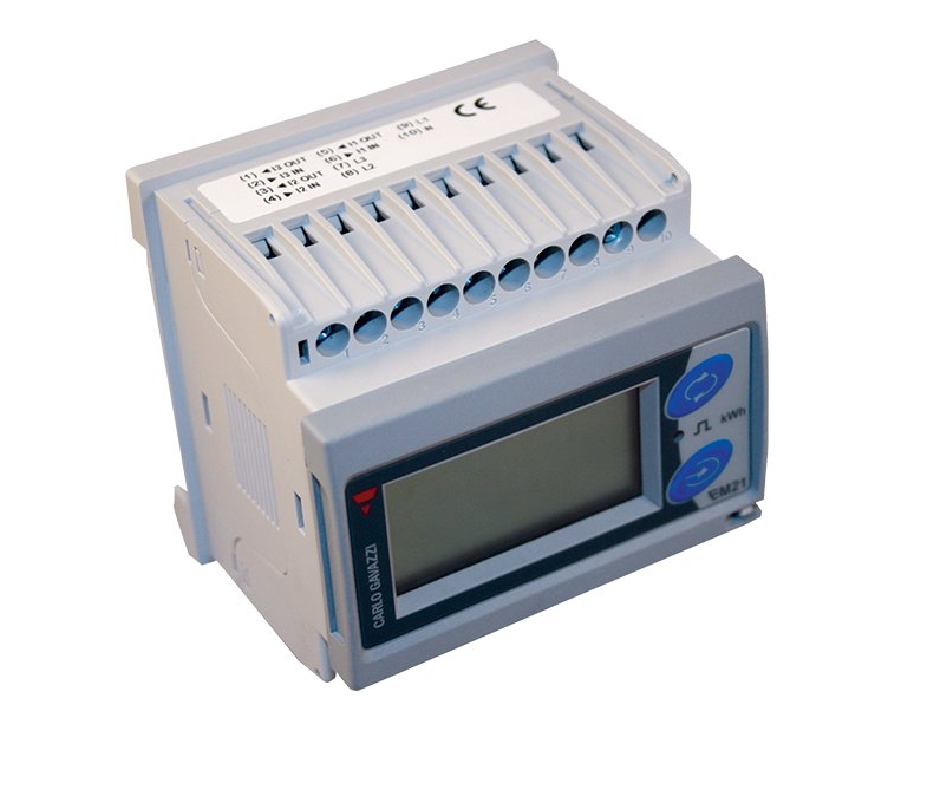

CARLO GAVAZZI EM21 ELECTRICITY METERS

Three-phase energy meter with removable front LCD display unit.

The same unit can be used either as a DIN-rail mounting or a panel mounting energy meter. This general purpose three-phase energy meter is suitable for both active and reactive energy metering for cost allocation but also for main electrical parameter measurement and retransmission (transducer function). Housing for DIN-rail mounting with IP50 (front) protection degree. Current measurements carried out by means of external current transformers and voltage measurements carried out either by means of direct connection or by means of potential transformers.

EM21-72D is provided, as standard, with a pulsating output for active energy retransmission.

In addition a 2- wire RS485 communication port is available as an option.

FEATURES

• Class B (kWh) according to EN50470-3
• Class 1 (kWh) according to EN62053-21
• Class 2 (kvarh) according to EN62053-23
• Accuracy ±0.5 RDG (current/voltage)
• Energy meter
• Energy measurements: total kWh & kvarh
• Self power supply
• Dimensions: 4-DIN modules and 72x72mm
• Easy connections management
• Detachable display
• Multi-use housing: for both DIN-rail and panel mounting applications
