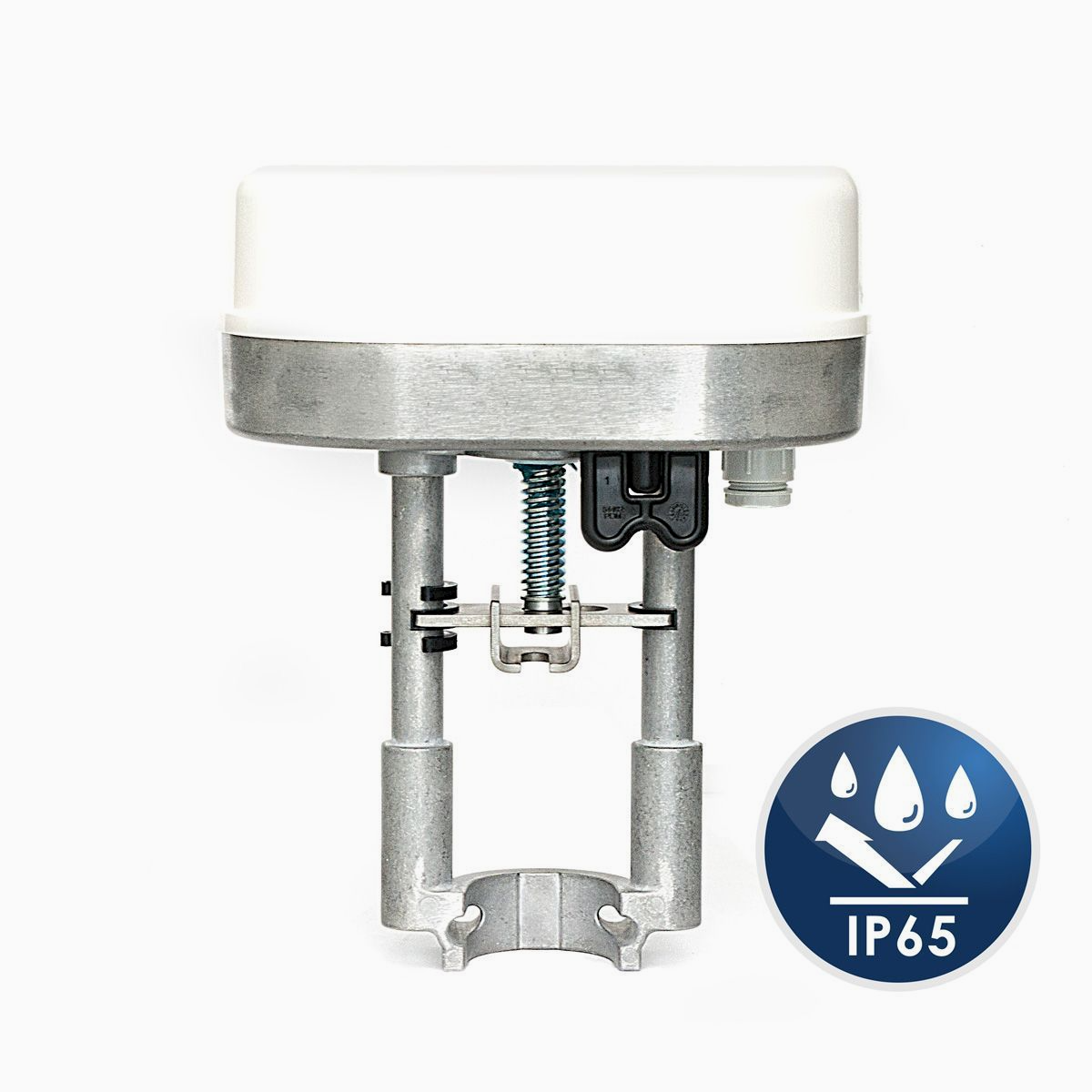

CONTROLLI IP65 UNIVERSAL ACTUATOR

The Controlli type MVE515-IP65 universal 24v 0-10v proportional motor, can be used/fitted to all Schneider type valves, as well as other makes of valves, to make suitable for IP65 outdoor protection, where bags/covers are not an ideal option.

The MV5215-IP65 can fit directly on to the below Schneider Type valves Ranges:

V241/V211T/V211/V212/VG211/VG222/V231/V232/V292

Part Number	Type	Rating & Stroke	Data Sheets
MVE515-IP65	24V 0-10V PROPORTIONAL	1500N-60MM STROKE	Download
MVE525-IP65	230V VERSION	1500N-60MM STROKE	Download

Universal Linkage Kits

Part Number	To suit type of valve	Data Sheets
AG53	SATCHWELL VZ/VSF/MZ/MJF/MZF	Download
AG60-10	HONEYWELL V176A.B/V5011A	Download
AG79	HONEYWELL V5011R	Download
AG66	JOHNSON VB7816
AG60-07	DANFOSS VF2/VF3	Download
AG70-10	BELIMO H6.N (DN15-100), H7.N (DN15-100)	Download
	SIEMENS VVF21(DN25-80),VVF31(DN15-80),
	VVF40(DN15-80),VVF51(DN15-40), VVF52(DN15-40),
	VVF53(DN15-150),VVF61(DN15-25),VVF61_2(DN15-150),
	VVG41(DN15-50),VVG11(DN25-40),VXF21(DN25-80),
	VXF31(DN15-80), VXF40(DN15-80),VXF51(DN15-40),
	VXF52(DN15-40),VXF53(DN15-150), VXF61(DN15-25),
	VXF61_2(DN15-150),VXG41(DN15-50),VXG11(DN25-40)
AG70-1	SIEMENS VVF21(DN100).VVF31(DN150),VVF40(DN150),
	VVF41(DN50-150), VVF45(DN50-150), VVF61(DN40-150),
	VXF21(DN100),VXF31(DN100-150),
	VXF40(DN100-150),VXF41(DN50-150),
	VXF45(DN50-150),VXF61(DN40-150).
