DANFOSS ABQM ACTUATORS

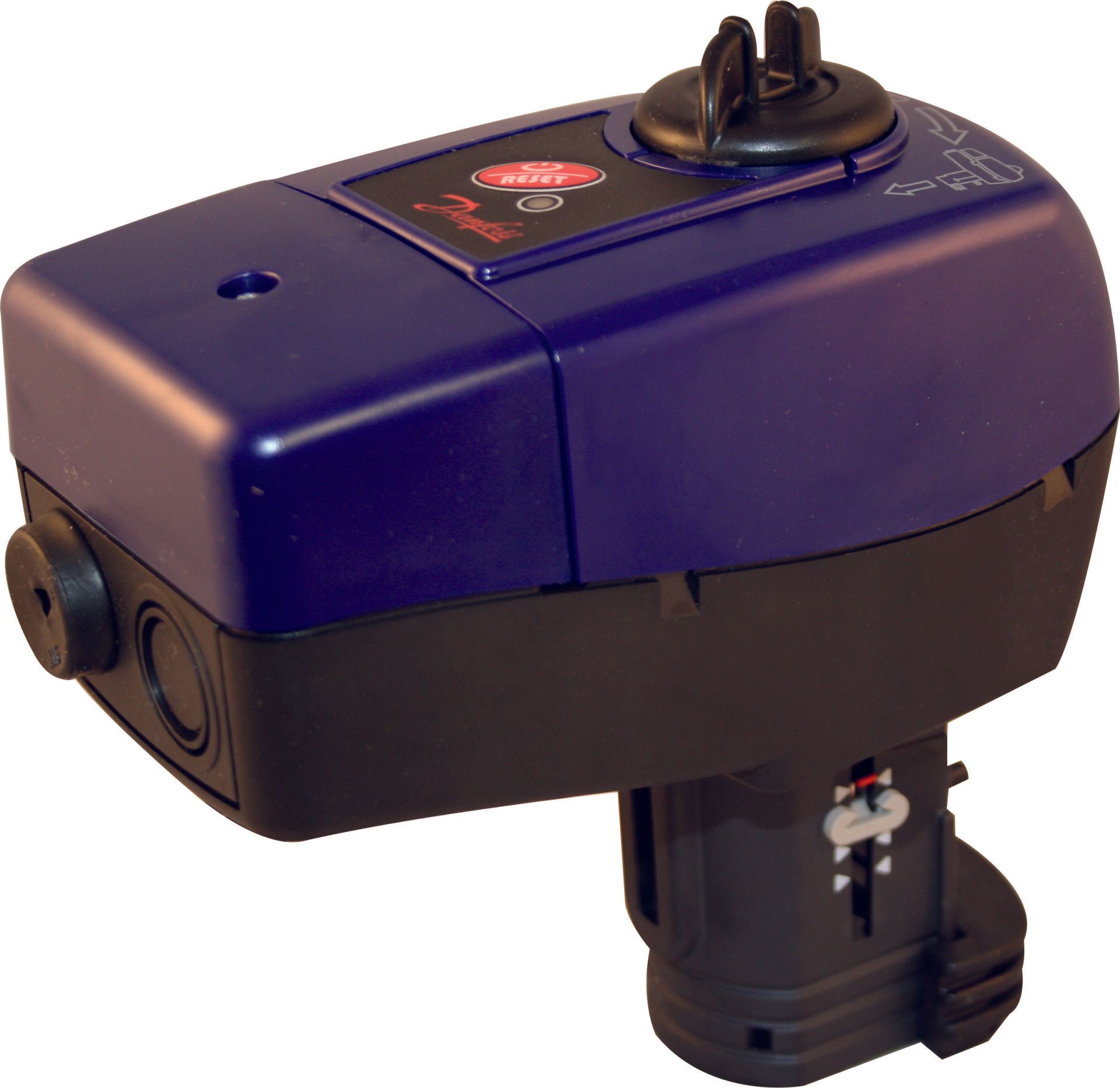

The AMV/AME series actuators are used together with automatically balanced combination valve type AB-QM for DN10 to DN32 whilst the AME 435QM actuator for modulating control is used with pressure independent balancing and control valve type AB-QM from DN40 to DN100.

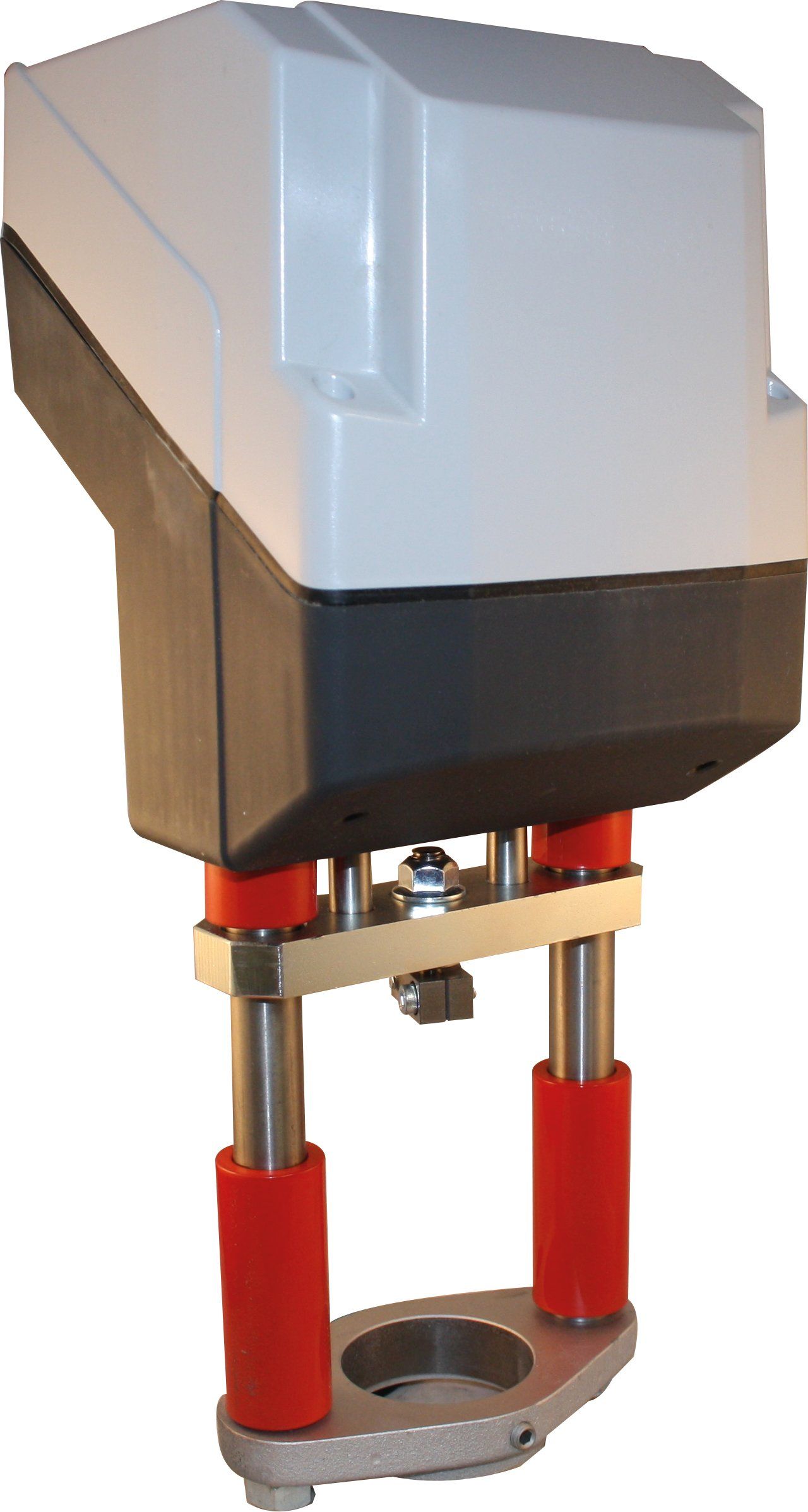

AME 55QM actuators to be used with DN125 & DN150. AME 85QM actuator is used together with large pressure independent balancing and control valve type AB-QM DN200 and DN250.
| Part Number | Type | Voltage(V) | 0-10V Feedback | To Suit Valve (mm) | Data Sheets |
|---|---|---|---|---|---|
| 082H803600 | AMV 130 | 24 | NO | 10-32 | DOWNLOAD |

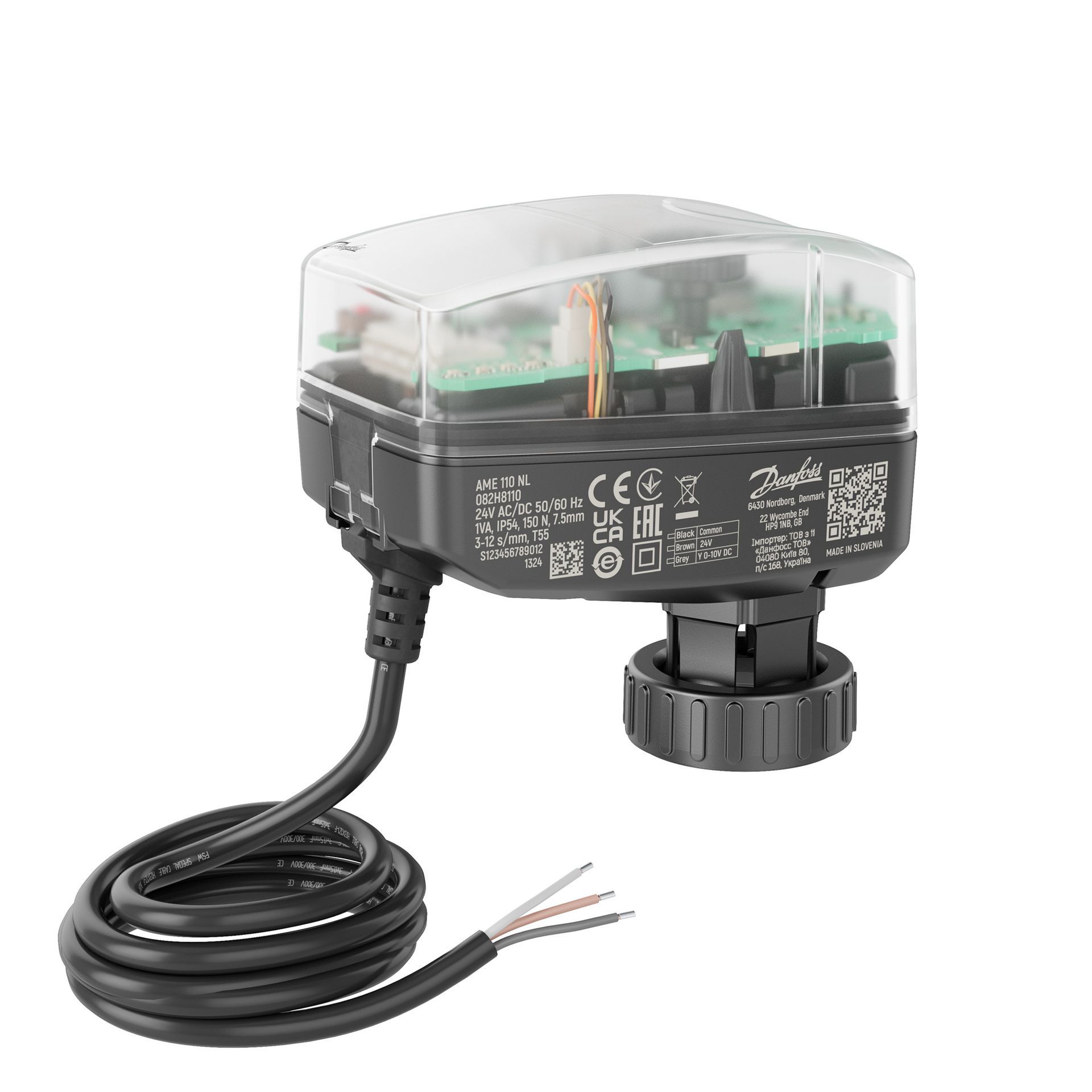

| 082H805700 | AME 110NL | 24 0-10V | NO | 10-32 | DOWNLOAD |
| 082H806000 | AME 110NLX | 24 0-10V | YES | 10-32 | DOWNLOAD |
| 082H017100 | AME 435QM | 24 0-10V | YES | 40-100 | DOWNLOAD |
| 082H307800 | AME 55QM | 24 0-10V | YES | 125-150 | DOWNLOAD |
| 082G145300 | AME 85QM | 24 0-10V | YES | 200-250 | DOWNLOAD |
