DANFOSS AMZ 2 & 3 PORT MOTORISED BALL VALVES
The AMZ range of motorised ball valves are typically used in domestic and commercial central heating applications.
FEATURES
- Supplied as a complete valve/actuator assembly.
- Indication of actual valve position
- Suitable for medium temperature up to 110°C
- Auxiliary switch fitted as standard with LED indication
- Silent and reliable operation

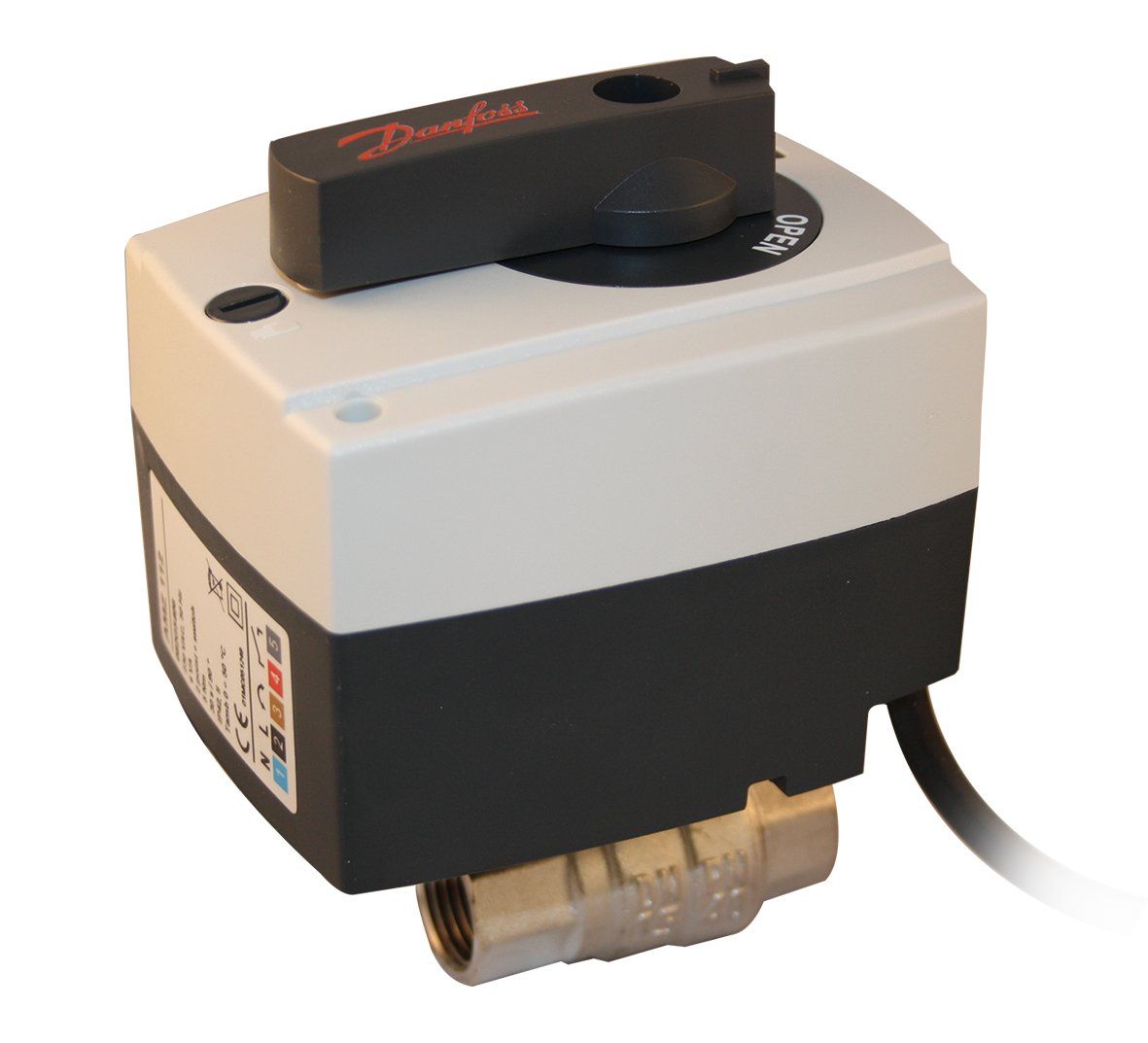

2 Port
| Part Number | Type | Size(mm) | Voltage(V) | Data Sheets |
|---|---|---|---|---|
| 082G540600 | AMZ 112 | 15 | 230 | Download |
| 082G540700 | AMZ 112 | 20 | 230 | Download |
| 082G540800 | AMZ 112 | 25 | 230 | Download |
| 082G540900 | AMZ 112 | 32 | 230 | Download |
| 082G541000 | AMZ 112 | 40 | 230 | Download |
| 082G541100 | AMZ 112 | 50 | 230 | Download |
| 082G540000 | AMZ 112 | 15 | 24 | Download |
| 082G540100 | AMZ 112 | 20 | 24 | Download |
| 082G540200 | AMZ 112 | 25 | 24 | Download |
| 082G540300 | AMZ 112 | 32 | 24 | Download |
| 082G540400 | AMZ 112 | 40 | 24 | Download |
| 082G540500 | AMZ 112 | 50 | 24 | Download |

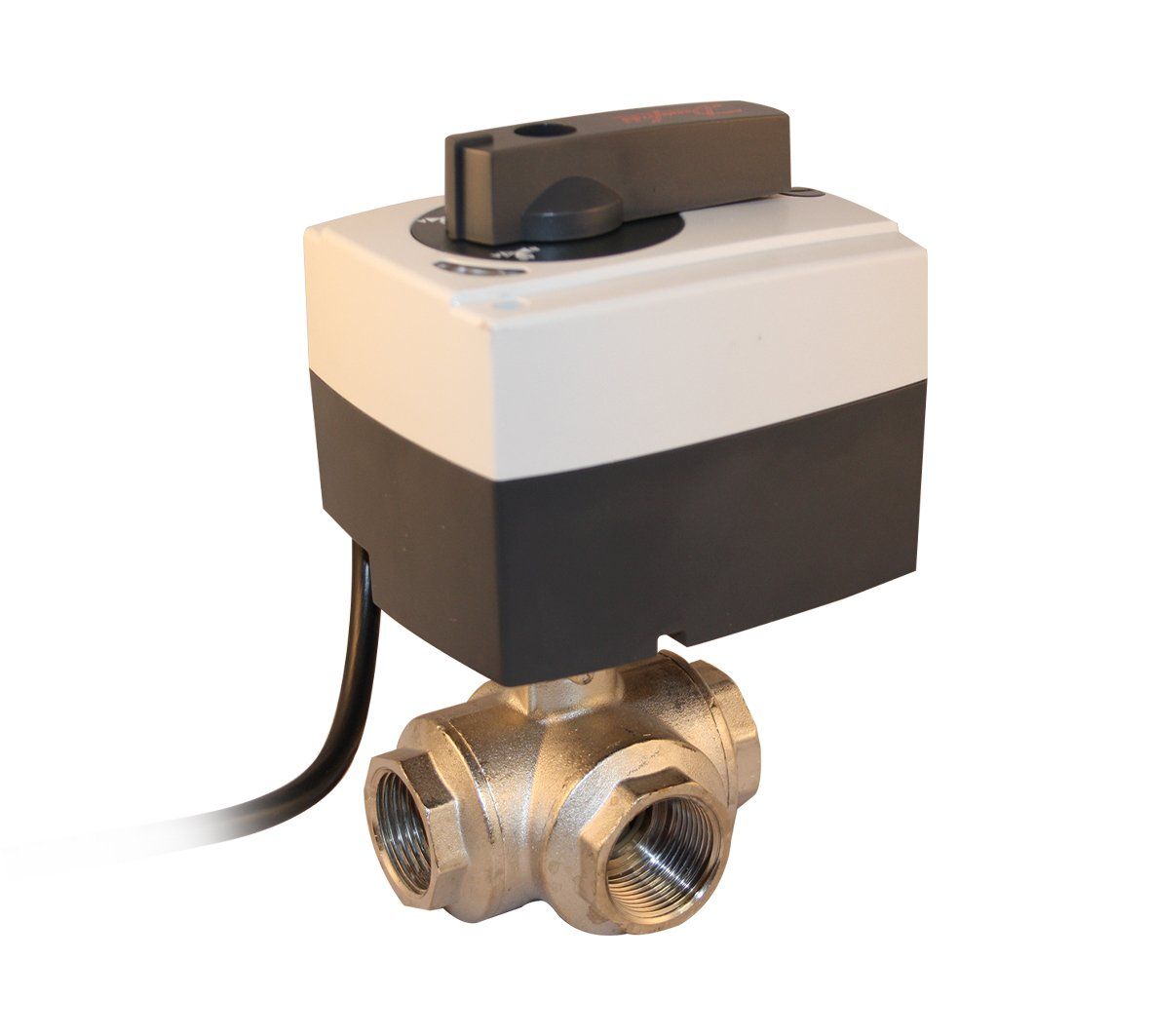

3 Port
| Part Number | Type | Size(mm) | Voltage (V) | Data Sheets |
|---|---|---|---|---|
| 082G541800 | AMZ 113 | 15 | 230 | Download |
| 082G541900 | AMZ 113 | 20 | 230 | Download |
| 082G542000 | AMZ 113 | 25 | 230 | Download |
| 082G542100 | AMZ 113 | 32 | 230 | Download |
| 082G541200 | AMZ 113 | 15 | 24 | Download |
| 082G541300 | AMZ 113 | 20 | 24 | Download |
| 082G541400 | AMZ 113 | 25 | 24 | Download |
| 082G541500 | AMZ 113 | 32 | 24 | Download |
