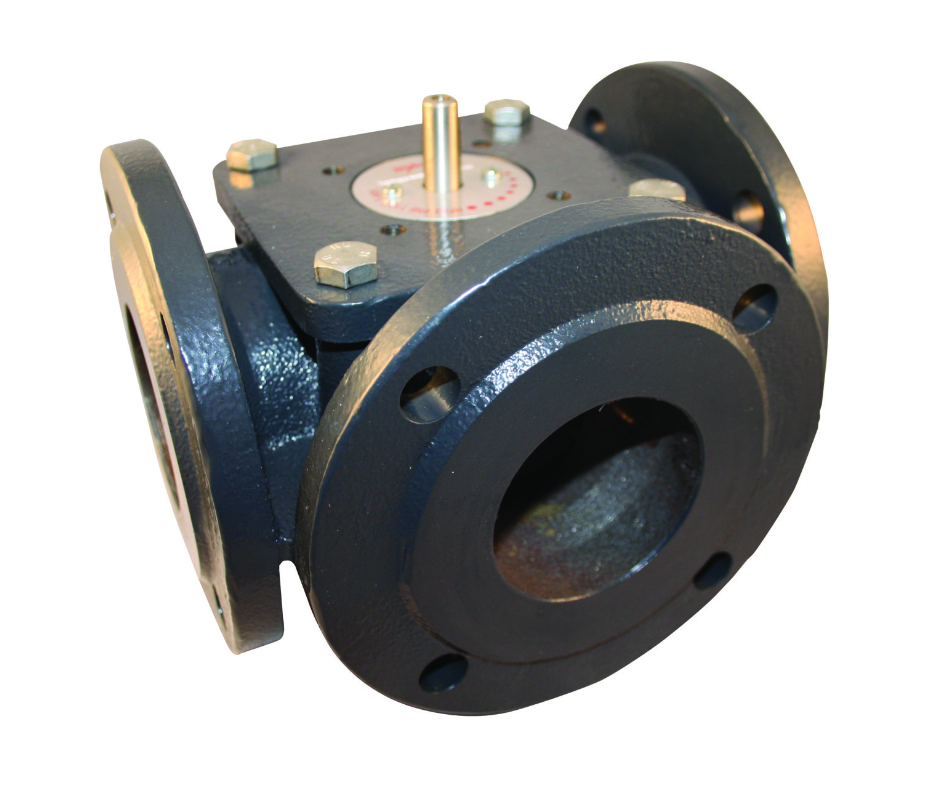

DANFOSS HRE/HFE ROTARY SHOE VALVES
HRE/HFE rotary valves are primarily designed for regulation of flow temperature in heating systems where a certain leakage can be accepted and where a defined control characteristic is not required.
FEATURES
- Rotary shoe valves for 20-150mm, used with 3-point and modulating actuators
- HRE internally threaded valves, cast iron body
- HFE flanged valves, PN6 cast iron body
- Suitable for medium temperature up to 110°C
- Lowest leakage in class
- For mixing and diverting applications
| Part Number | Type | Size | Kvs (m³/h) | Data Sheets |
|---|---|---|---|---|
| 065Z041800 | HRE3 20/6.3 | 20 | 6.3 | Download |
| 065Z041900 | HRE3 25/10 | 25 | 10 | Download |
| 065Z042000 | HRE3 32/16 | 32 | 16 | Download |
| 065Z042100 | HRE3 40/25 | 40 | 25 | Download |
| 065Z042200 | HRE3 50/40 | 50 | 40 | Download |
| 065Z043300 | HFE3 65/90 | 65 | 90 | Download |
| 065Z043400 | HFE3 80/150 | 80 | 150 | Download |
| 065Z043500 | HFE3 100/225 | 100 | 225 | Download |
| 065Z043600 | HFE3 125/280 | 125 | 280 | Download |
| 065Z043700 | HFE3 150/400 | 150 | 400 | Download |
