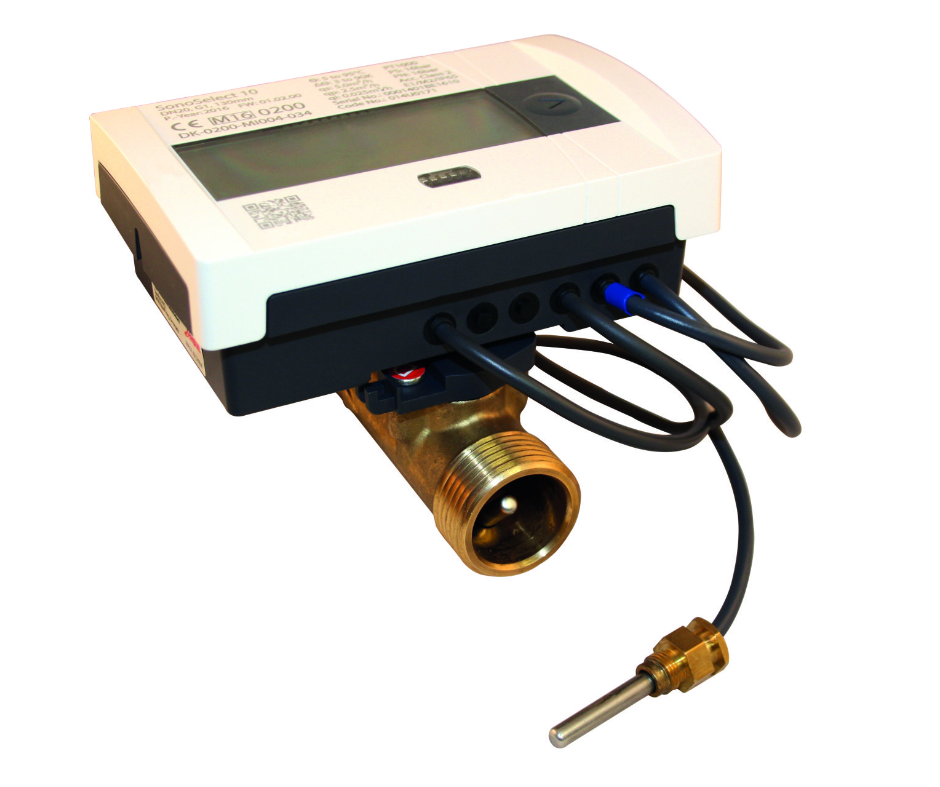

DANFOSS SONOSELECT ULTRASONIC ENERGY METERS
The SonoSelect meter range are ultrasonic, compact energy meters intended for measuring energy consumption in heating applications for billing purposes.
FEATURES
- MID Approved Class II
- DN15-32, heating & cooling versions
- M-bus + 2 Pulse Inputs as standard, (pulse inputs allow additional pulse devices to be wired directly through heat meter)
- Battery as standard (17 Year life). 230vac option available. Please specify
- Sensor mounted directly into meter body, M10 adaptor supplied to allow free sensor to be mounted direct into line/media
- Compatible with app connectivity via Bluetooth dongle
To be mounted in return line as standard.
| Part Number | Size (DN) | Nom Flow (m3/h) | Heating/Cooling | Data Sheets |
|---|---|---|---|---|
| SONOSELECT/15/1.5-H | 15 | 1.5 | HEATING | Download |
| SONOSELECT/20/2.5-H | 20 | 2.5 | HEATING | Download |
| SONOSELECT/25/3.5-H | 25 | 3.5 | HEATING | Download |
| SONOSELECT/32/6.0-H | 32 | 6.0 | HEATING | Download |
| SONOSELECT/15/1.5-C | 15 | 1.5 | COOLING | Download |
| SONOSELECT/20/2.5-C | 20 | 2.5 | COOLING | Download |
| SONOSELECT/25/3.5-C | 25 | 3.5 | COOLING | Download |
| SONOSELECT/32/6.0-C | 32 | 6.0 | COOLING | Download |
