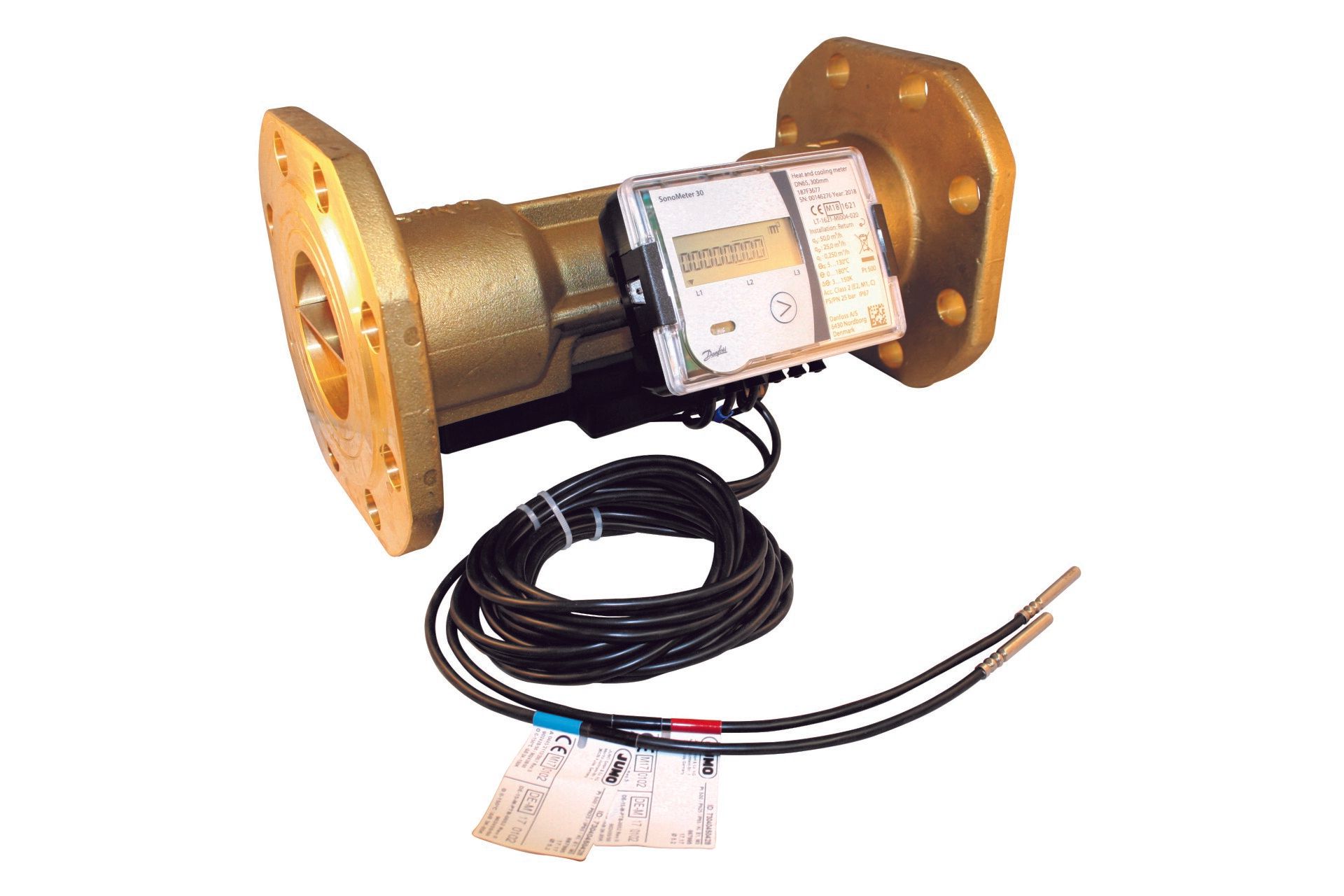

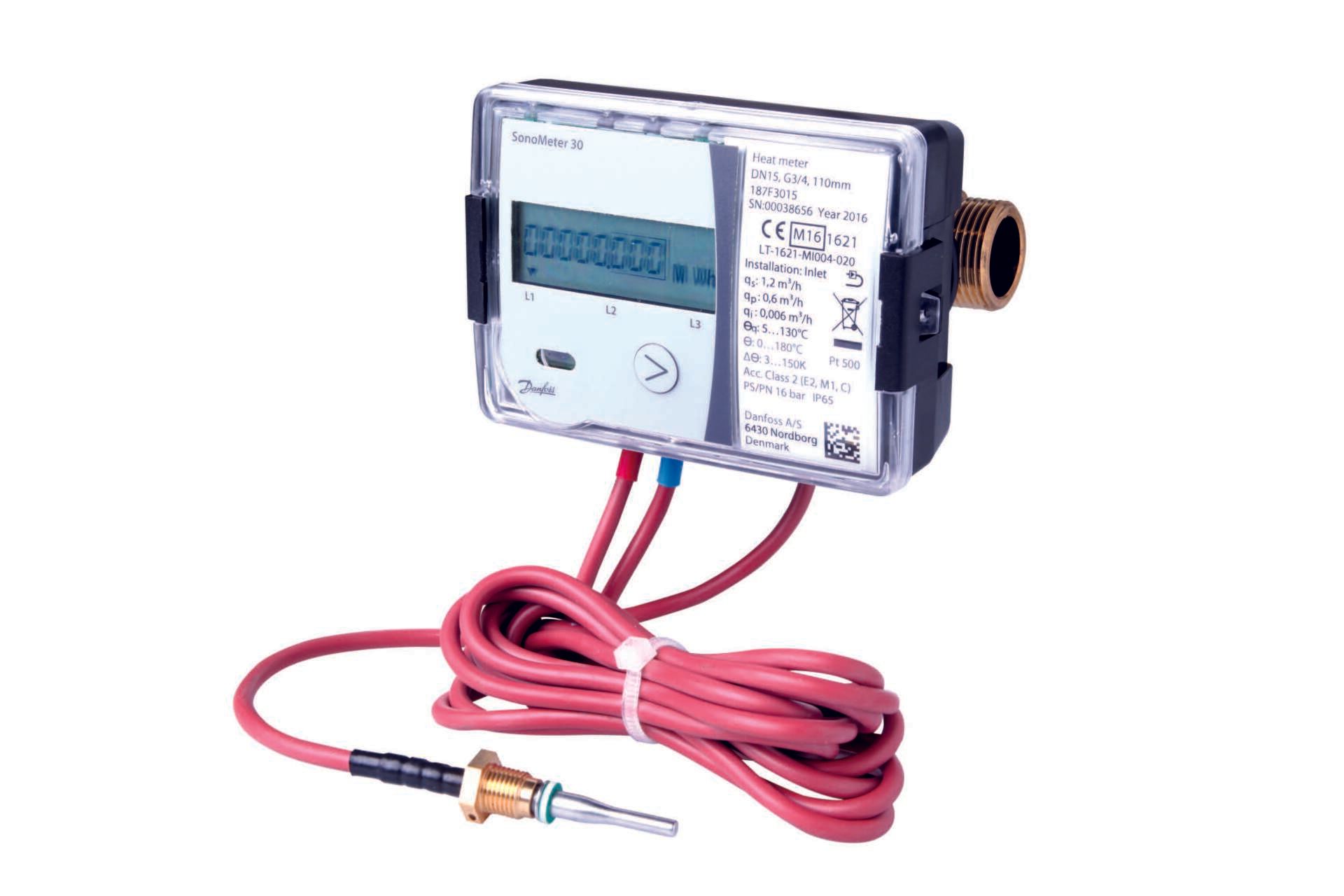

DANFOSS SONO30 ULTRASONIC ENERGY METERS
The Danfoss Sono30 is a range of ultrasonic, compact energy meters intended for measuring energy consumption in heating and cooling applications for billing purposes.
FEATURES
- MID Approved Class II
- DN15-40 (Screwed) - suitable for heating & cooling as standard
- M-Bus & 2 x Pulse input/output as standard
- BACnet & Modbus options available
- Battery as standard, 230v or 24v available please specify
- Meters complete with 1.5m temperature sensors, pockets & connections
- DN15-20 meters - return sensor mounted directly into supplied to allow flow sensor to be mounted direct into line/media
To be mounted in return line as standard, flow versions available on request
| Part Number | Size (DN) | Nom Flow (m3/h) | Data Sheets |
|---|---|---|---|
| SONO30/15/1.5 | 15 | 1.5 | Download |
| SONO30/20/2.5 | 20 | 2.5 | Download |
| SONO30/25/3.5 | 25 | 3.5 | Download |
| SONO30/25/6.0 | 25 | 6 | Download |
| SONO30/40/10 | 40 | 10 | Download |
| SONO30/50/15 | 50 | 15 | Download |
| SONO30/65/25 | 65 | 25 | Download |
| SONO30/80/40 | 80 | 40 | Download |
| SONO30/100/60 | 100 | 60 | Download |
