DANFOSS SPRING RETURN CONTROL VALVE ACTUATORS

AMV/AME spring return actuators for use with VRB/VF control valves.\


FEATURES

  • For use in 3-point control and modulating applications
  • Self-stroking function on modulating version
  • Spring up function: In case of power failure or power switch off spring up function retracts actuator stem to end position. Further manual stem positioning is not disabled

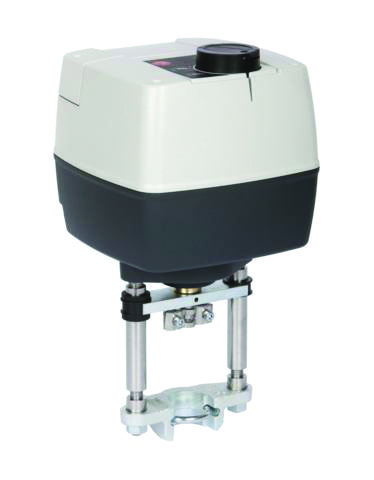

Danfoss Spring Return Control Valve Actuators
Danfoss Spring Return Control Valve Actuators

24V

Part Number Type Voltage (V) To Suit Valve (mm) Data Sheets

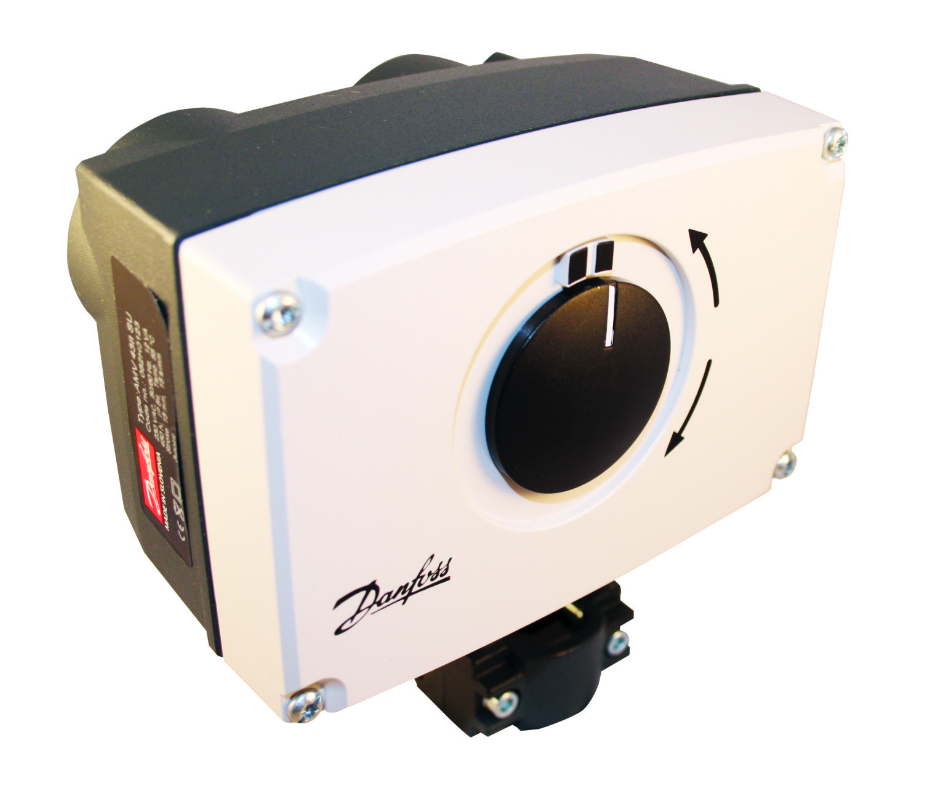

082H012200 AMV 438SU 24 VRB/VF 15-50 Download
082G344600 AMV 658SU 24 VF 100-150 Download

230V

Part Number Type Voltage (V) To Suit Valve (mm) Data Sheets
082H012300 AMV 438SU 230 VRB/VF 15-50 Download
082G344700 AMV 658SU 230 VF 100-150 Download

0-10V

Part Number Type Voltage (V) To Suit Valve (mm) Data Sheets
082H012100 AME 438SU 24 0-10v VRB/VF 15-50 Download
082G345100 AME 658SU 24 0-10v VF 100-150 Download

FOR SPRING RETURN OPTIONS FROM 65MM - UPWARDS - USE THE STANDARD AMV/AME OPTIONS FROM THE TOP OF THE PAGE, ALONG WITH BATTERY BACK UP SUPPLY OPTION AM-PBU REF: 082H709000


CONTACT US FOR FURTHER DETAILS
