DANFOSS VRB/VF 2 PORT CONTROL VALVES
VRB/VF valves provide a quality, cost effective solution for most water and chilled applications.
FEATURES
- Plant valves for 15-300mm, used with 3-point, modulating and spring return plant actuators

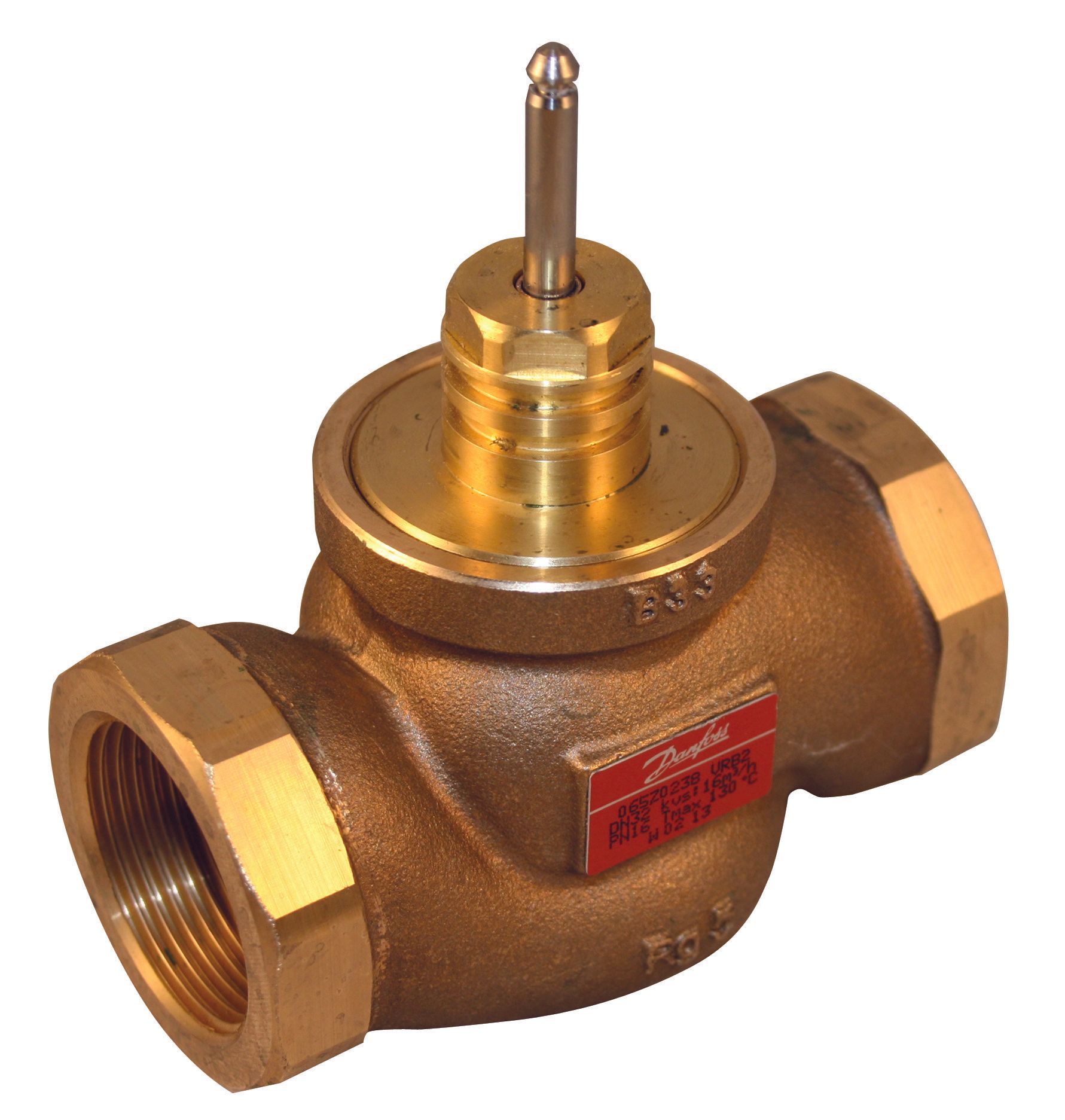

- VRB internally threaded valves – direct connection to BSP pipework without the need for couplings

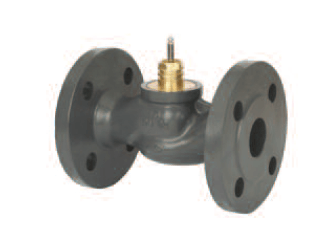

- VF flanged valves – made with PN16 cast iron body, stainless steel spindle and brass plug
- Suitable for medium temperature up to 130°C
- Can be used with glycol concentrations of up 50%
- Stem heaters available for temperatures down to -10°C
| Part Number | Type | Size (mm) | Kvs (m³/h) | Data Sheets |
|---|---|---|---|---|
| 065Z023100 | VRB2 15/0.63 | 15 | 0.63 | Download |
| 065Z023200 | VRB2 15/1.0 | 15 | 1 | Download |
| 065Z023300 | VRB2 15/1.6 | 15 | 1.6 | Download |
| 065Z023400 | VRB2 15/2.5 | 15 | 2.5 | Download |
| 065Z023500 | VRB2 15/4.0 | 15 | 4 | Download |
| 065Z023600 | VRB2 20/6.3 | 20 | 6.3 | Download |
| 065Z023700 | VRB2 25/10 | 25 | 10 | Download |
| 065Z023800 | VRB2 32/16 | 32 | 16 | Download |
| 065Z023900 | VRB2 40/25 | 40 | 25 | Download |
| 065Z024000 | VRB2 50/40 | 50 | 40 | Download |
| 065Z028100 | VF2 65/63 | 65 | 63 | Download |
| 065Z028200 | VF2 80/100 | 80 | 100 | Download |
| 065B320500 | VF2 100/145 | 100 | 145 | Download |
| 065B323000 | VF2 125/220 | 125 | 220 | Download |
| 065B325500 | VF2 150/320 | 150 | 320 | Download |
| 065B350500 | VFM2 200/630 | 200 | 630 | Download |
| 065B350600 | VFM2 250/900 | 250 | 900 | Download |
