DANFOSS VRB/VF 3 PORT CONTROL VALVES
VRB/VF valves provide a quality, cost effective solution for most water and chilled applications.
FEATURES
- Plant valves for 15-300mm, used with 3-point, modulating and spring return plant actuators

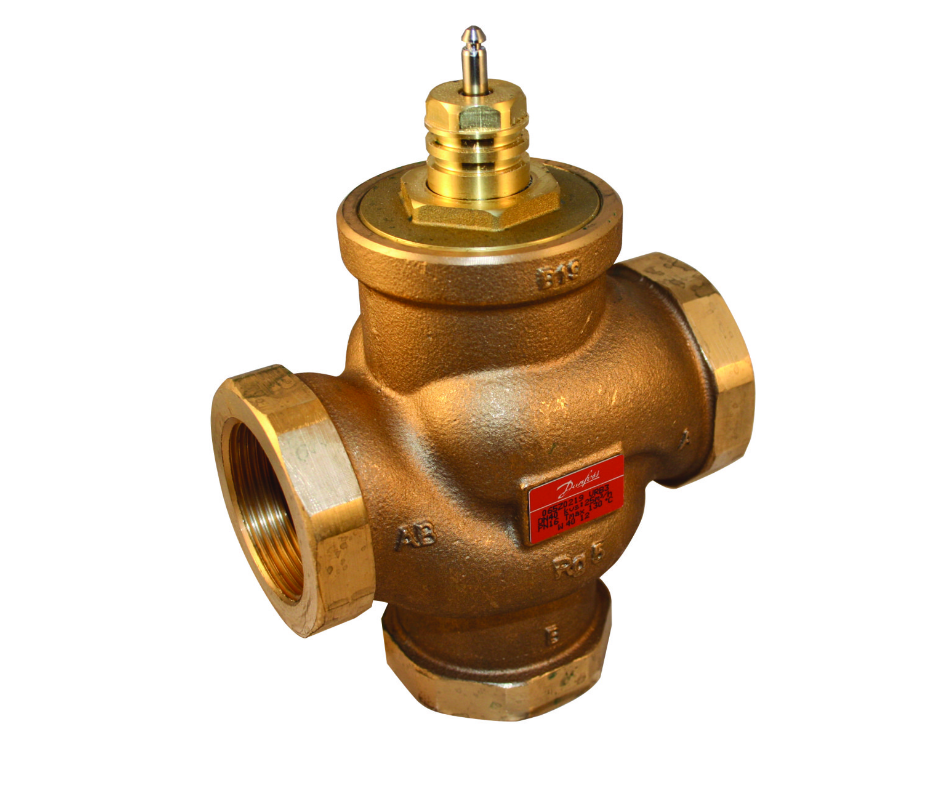

- VRB internally threaded valves – direct connection to BSP pipework without the need for couplings

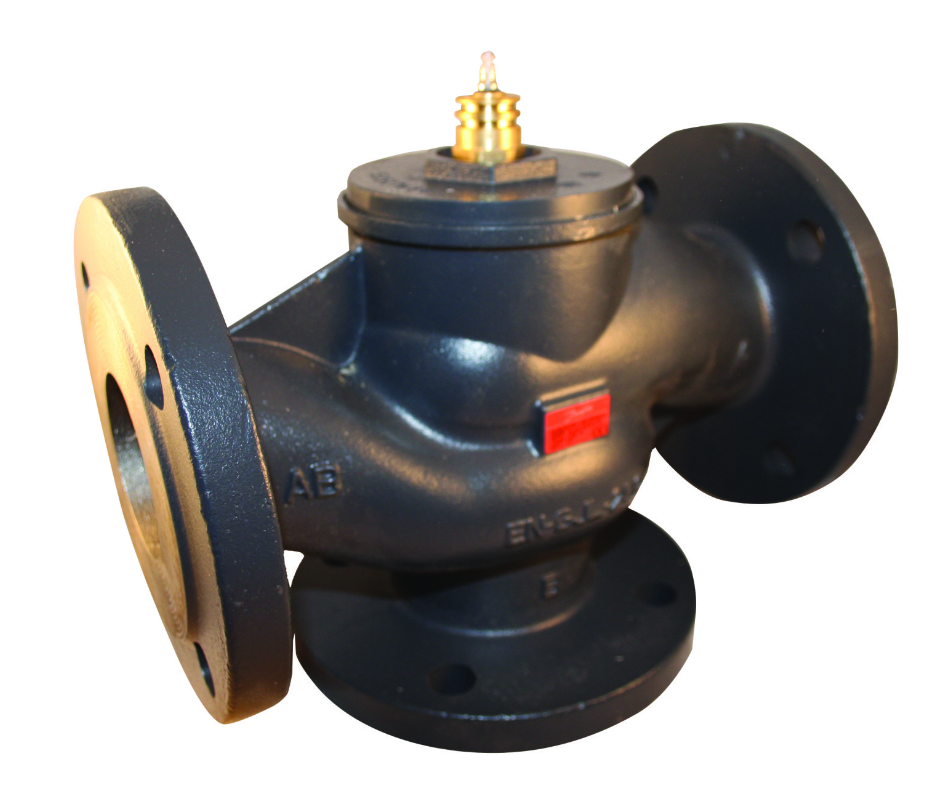

- VF flanged valves – made with PN16 cast iron body, stainless steel spindle and brass plug
- Suitable for medium temperature up to 130°C
- Can be used with glycol concentrations of up 50%
- Stem heaters available for temperatures down to -10°C
- Suitable for mixing and diverting applications
| Part Number | Type | Size (mm) | Kvs (m³/h) | Data Sheets |
|---|---|---|---|---|
| 065Z021100 | VRB315/0.63 | 15 | 0.63 | Download |
| 065Z021200 | VRB3 15/1.0 | 15 | 1 | Download |
| 065Z021300 | VRB3 15/1.6 | 15 | 1.6 | Download |
| 065Z021400 | VRB3 15/2.5 | 15 | 2.5 | Download |
| 065Z021500 | VRB3 15/4.0 | 15 | 4 | Download |
| 065Z021600 | VRB3 20/6.3 | 20 | 6.3 | Download |
| 065Z021700 | VRB3 25/10 | 25 | 10 | Download |
| 065Z021800 | VRB3 32/16 | 32 | 16 | Download |
| 065Z021900 | VRB3 40/25 | 40 | 25 | Download |
| 065Z022000 | VRB3 50/40 | 50 | 40 | Download |
| 065Z026100 | VF3 65/63 | 65 | 63 | Download |
| 065Z026200 | VF3 80/100 | 80 | 100 | Download |
| 065B168500 | VF3 100/145 | 100 | 145 | Download |
| 065B312500 | VF3 125/220 | 125 | 220 | Download |
| 065B315000 | VF3 150/320 | 150 | 320 | Download |
| 065B420000 | VF3 200/630 | 200 | 630 | Download |
| 065B425000 | VF3 250/1000 | 250 | 1000 | Download |
| 065B430000 | VF3 300/1500 | 300 | 1500 | Download |
