ELSTER QA TURBINE GAS METERS C/W PULSE OUTPUT

The QA range is a turbine meter based on the rotation of an impellor, the speed of rotation being proportional to the flow rate of the gas.


The meters are constructed for installation between flanges and come with a pulse plug as standard. Flange fixing bolt kits supplied as standard with this range.



FEATURES

  • Compact gas meter
  • Meter sizes QA 1” - 6”
  • Flow ranges 6 - 1000 m3/h
  • Measuring range up to 1:20, at higher pressures up to 1:50
  • Nominal width DN50 - DN150
ELSTER QA TURBINE GAS METERS C/W PULSE OUTPUT
ELSTER QA TURBINE GAS METERS C/W PULSE OUTPUT
Part Number Size (mm) Min Flow (m3/h) Max Flow (m3/h) Data Sheets

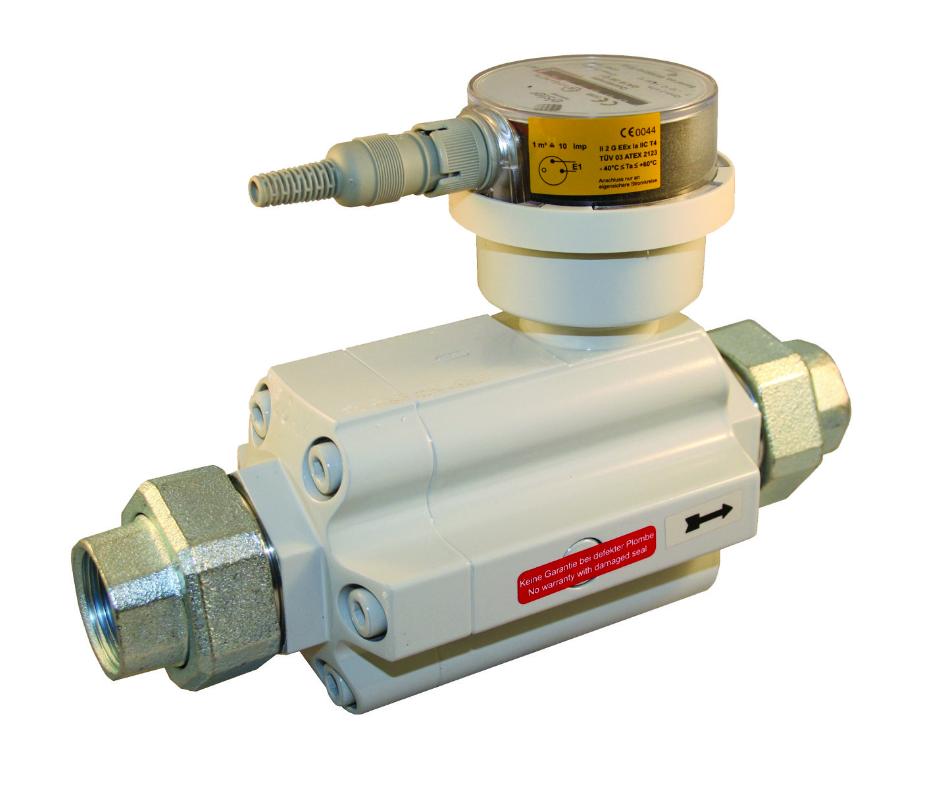

QA10/25 25 SCREWED 1.6 16 Download
QA16/25 25 SCREWED 2 25 Download
QA25/25 25 SCREWED 2.5 40 Download
QA40/40 40 SCREWED 5 65 Download
Part Number Size (mm) Min Flow (m3/h) Max Flow (m3/h) Data Sheets

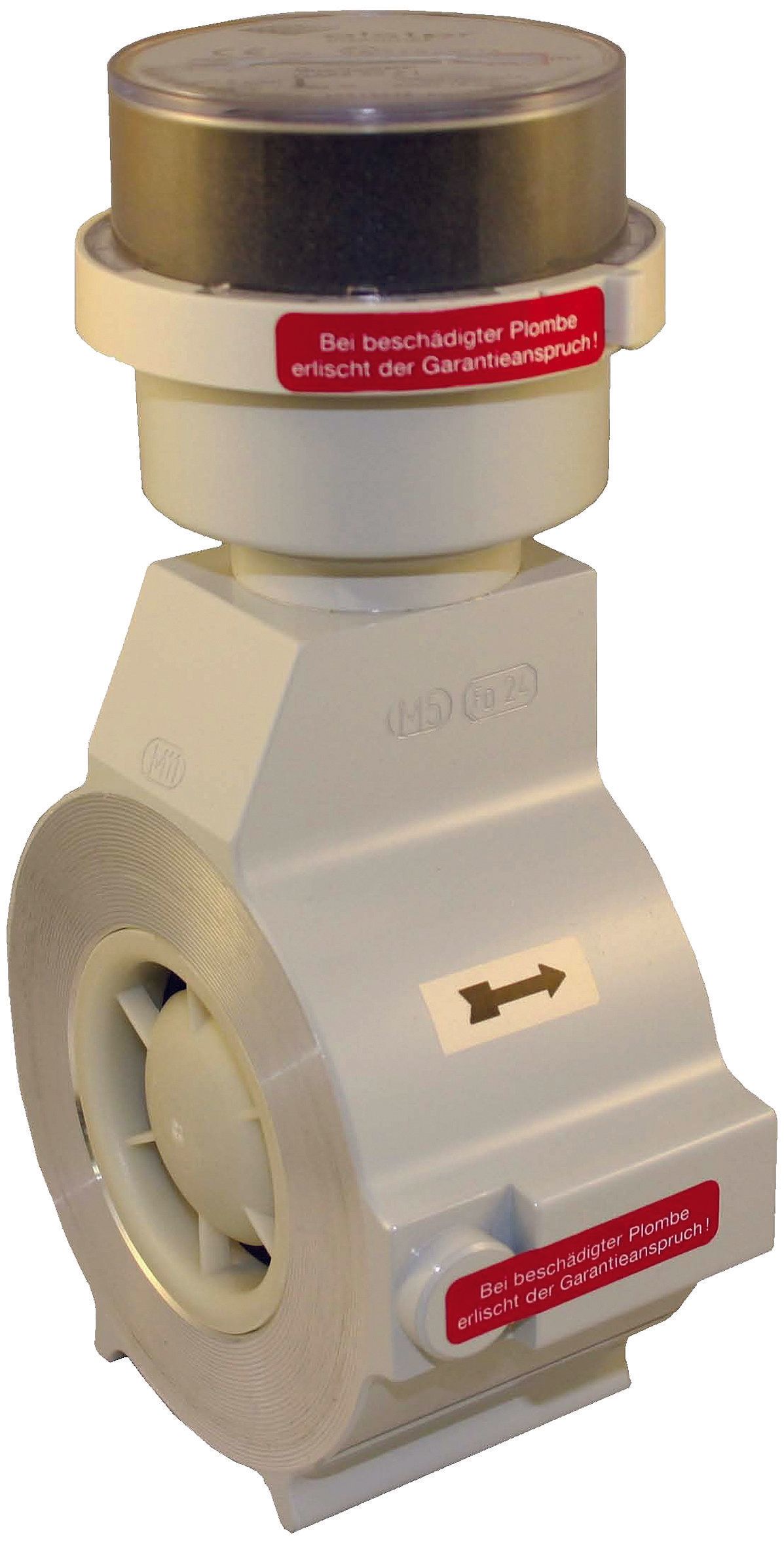

QA65/50 50 FLANGED 6 100 Download
QA100/80 80 FLANGED 10 160 Download
QA160/80 80 FLANGED 13 250 Download
QA250/100 100 FLANGED 20 400 Download
QA400/150 150 FLANGED 32 650 Download
QA650/150 150 FLANGED 50 1000 Download
