ESBE ROTARY SHOE VALVES & ACTUATORS
The ESBE range of rotary shoe types valves, designed for regulation of flow temperature in heating systems were a certain leakage can be accepted and where a defined control characteristic is not required.
Features
- Superb regulation
- Lowest internal leakage on the market (< 0,05%)
- Long lasting and high durability
- Wide range of sizes up to DN150
- Perfect match between the valve and ESBE actuators
- Other ESBE options available
| Part Number | Type | Size (mm) | Kvs (m³/hr) | Datasheet |
|---|---|---|---|---|

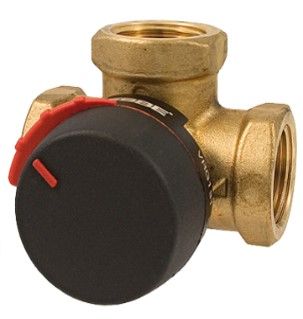

| 11600500 | VRG131/ 15/2.5 | 15 | 2.5 | Download |
| 11600600 | VRG131/ 15/4 | 15 | 4 | Download |
| 11600700 | VRG131/ 20/2.5 | 20 | 2.5 | Download |
| 11600800 | VRG131 / 20/4 | 20 | 4 | Download |
| 11600900 | VRG131 / 20/6.3 | 20 | 6.3 | Download |
| 116011000 | VRG131 / 25/6.3 | 25 | 6.3 | Download |
| 11601100 | VRG131 / 25/10 | 25 | 10 | Download |
| 11601200 | VRG131 / 32/10 | 32 | 16 | Download |
| 11603400 | VRG131 / 40/25 | 40 | 25 | Download |
| 11603600 | VRG131 / 50/40 | 50 | 40 | Download |

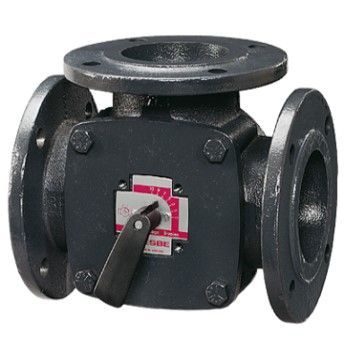

| 11100600 | 3F50 | 50 | 60 | Download |
| 11100800 | 3F65 | 65 | 90 | Download |
| 11101000 | 3F80 | 80 | 150 | Download |
| 11101200 | 3F100 | 100 | 225 | Download |
| 11101400 | 3F125 | 125 | 280 | Download |
| 1101600 | 3F150 | 150 | 400 | Download |
| Part Number | Type | Voltage/Speed | Aux Switch | To Suit Valve | Control | Datasheet |
|---|---|---|---|---|---|---|
| 12101700 | ARA652 | 230V (60S) | YES | VRG RANGE> 2" | 3 POINT (OPEN/CLOSE) | Download |
| 12101800 | ARA662 | 230V (120S) | YES | VRG RANGE> 2" | 3 POINT (OPEN/CLOSE) | Download |
| 12101900 | ARA672 | 230V (240S) | YES | VRG RANGE> 2" | 3 POINT (OPEN/CLOSE) | Download |
| 12121200 | ARA656 | 230V (60S) | YES | VRG RANGE> 2" | 2 POINT ON/OFF | Download |
| 12100800 | ARA664 | 24V (120S) | YES | VRG RANGE> 2" | 3 POINT (OPEN/CLOSE) | Download |
| 12120600 | ARA658 | 24V(60S) | YES | VRG RANGE> 2" | 2 POINT ON/OFF | Download |
| 12520200 | ARA659 | 24V (0-10V)(120S) | NO | VRG RANGE> 2" | MODULATING/PROPORTIONAL | Download |
| 12052100 | 95-2M | 230V (120S) | YES | 3F RANGE DN50 - DN150 | 3 POINT (OPEN/CLOSE) | Download |
| 12052200 | 95M | 230V (60S) | YES | 3F RANGE DN50 - DN150 | 3 POINT (OPEN/CLOSE) | Download |
| 12051100 | 92M | 24V (60S) | YES | 3F RANGE DN50 - DN150 | 3 POINT (OPEN/CLOSE) | Download |
| 12550500 | 93P | 24V (0-10V)(60-390S) | NO | 3F RANGE DN50 - DN150 | MODULATING/PROPORTIONAL | Download |
