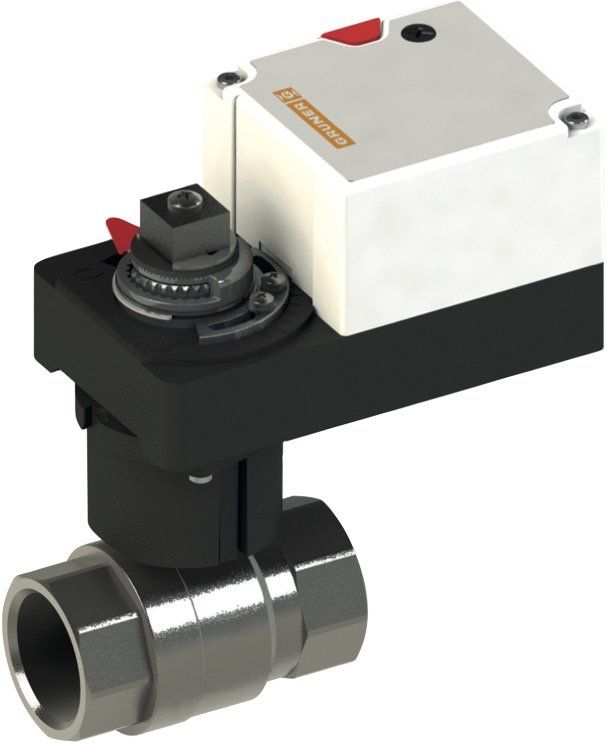

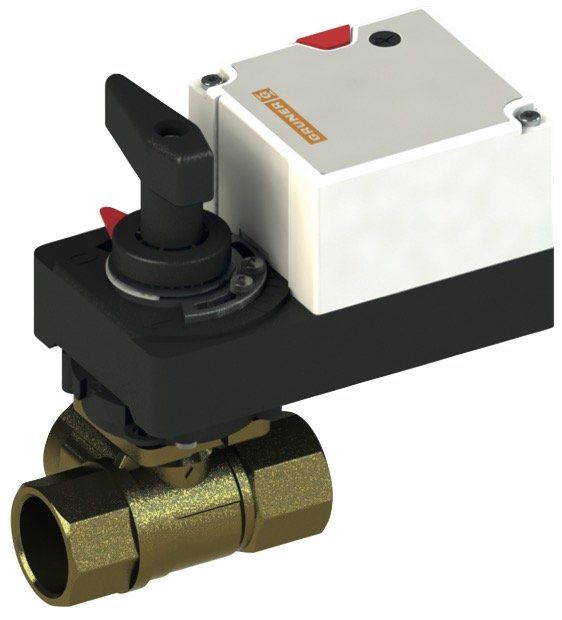

GRUNER BALL VALVES & ACTUATORS
Gruner range of 2 & 3 port female connection ball valves for use in HVAC systems to regulate the flow of water.
FEATURES
- 2 port shut off valves DN15-50 – 2 port characterised valves available on request
- 3 port characterised valves DN15-50 – other 3 port Kvs available on request
- For use with 24v, 230v and 0-10v modulating actuators
- Linkage supplied as standard with all valves
- Valve Body Material – 2 port brass, 3 port brass/stainless steel
- 2 port suitable for medium temperature up to 100°C, 3 port suitable for medium temperature up to 140°C
- Suitable for use with glycol – 2 port max 30%, 3 port max 50%
- 5 year warranty
230V
Spring Return
| Part Number | Force (Nm) | Voltage (V) | Aux Switch | To Suit Valve (mm) | Data Sheets |
|---|---|---|---|---|---|
| 341-024-05 | 5 | 24 | NO | 15-25 | Download |
| 341-024-05-S2 | 5 | 24 | YES | 15-25 | Download |
| 341-230-05 | 5 | 230 | NO | 15-25 | Download |
| 341-230-05-S2 | 5 | 230 | YES | 15-25 | Download |
| 341C-024-05 | 5 | 24 0-10v | NO | 15-25 | Download |
| 341C-024-05-S2 | 5 | 24 0-10v | YES | 15-25 | Download |
