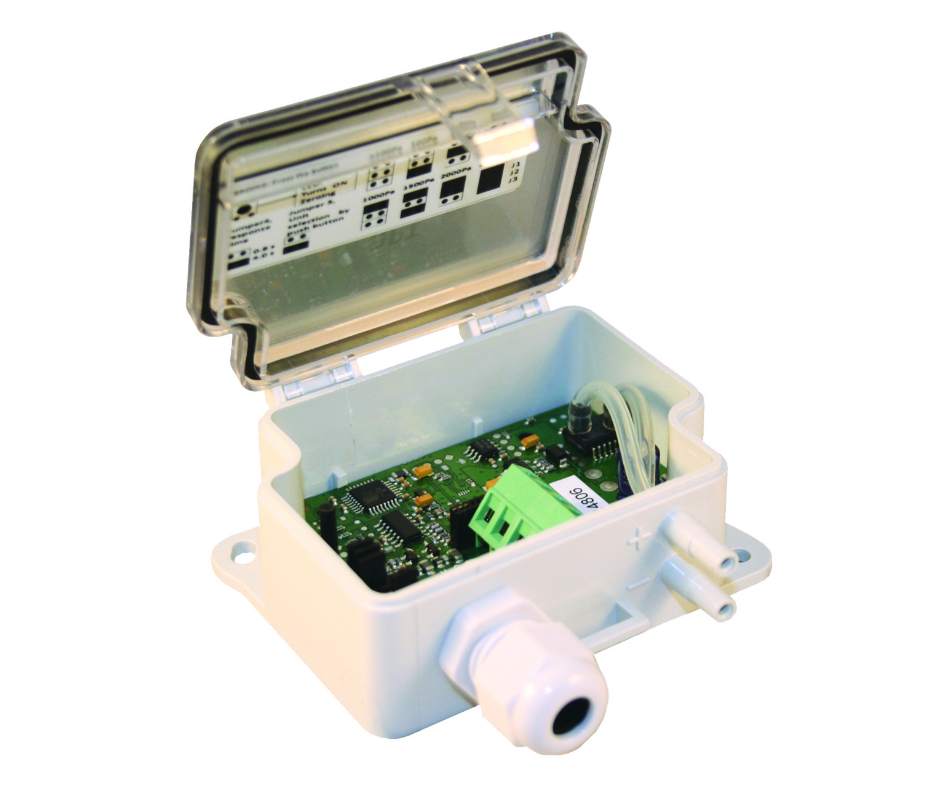

HK DPT TRANSMITTERS

Differential pressure transmitter DPT-3wire eight range model.

Unique switch suitable for either 0-10V or 4-20MA output in same switch also has 8 selectable ranges.

FEATURES

• Response Time 0.8/4s selectable by push button
• Bursting pressure 30kPa (model 2500)
• Suitable media air and non-aggressive gases
• Measuring element Piezoresistive
• Accuracy from range ±1,5% or (±6Pa <250 Pa) (including: general accuracy temperature drift, linearity, hysteresis and repetition error)
• Electrical interface Supply voltage 24VAC or VDC
• Electrical connections 4 screw terminals, max 1.5mm2
• Cable entry M16
• Pressure connections Male 5.0mm and 6.3mm
• Weight 150 grams, with accessories 290 grams
• Dimensions 90.0 x 71.5 x 36.0 mm
