HOT WATER METERS C/W PULSE OUTPUT - WRAS APPROVED
A range of class B multijet, dry dial, 16 bar rated water meters.
FEATURES

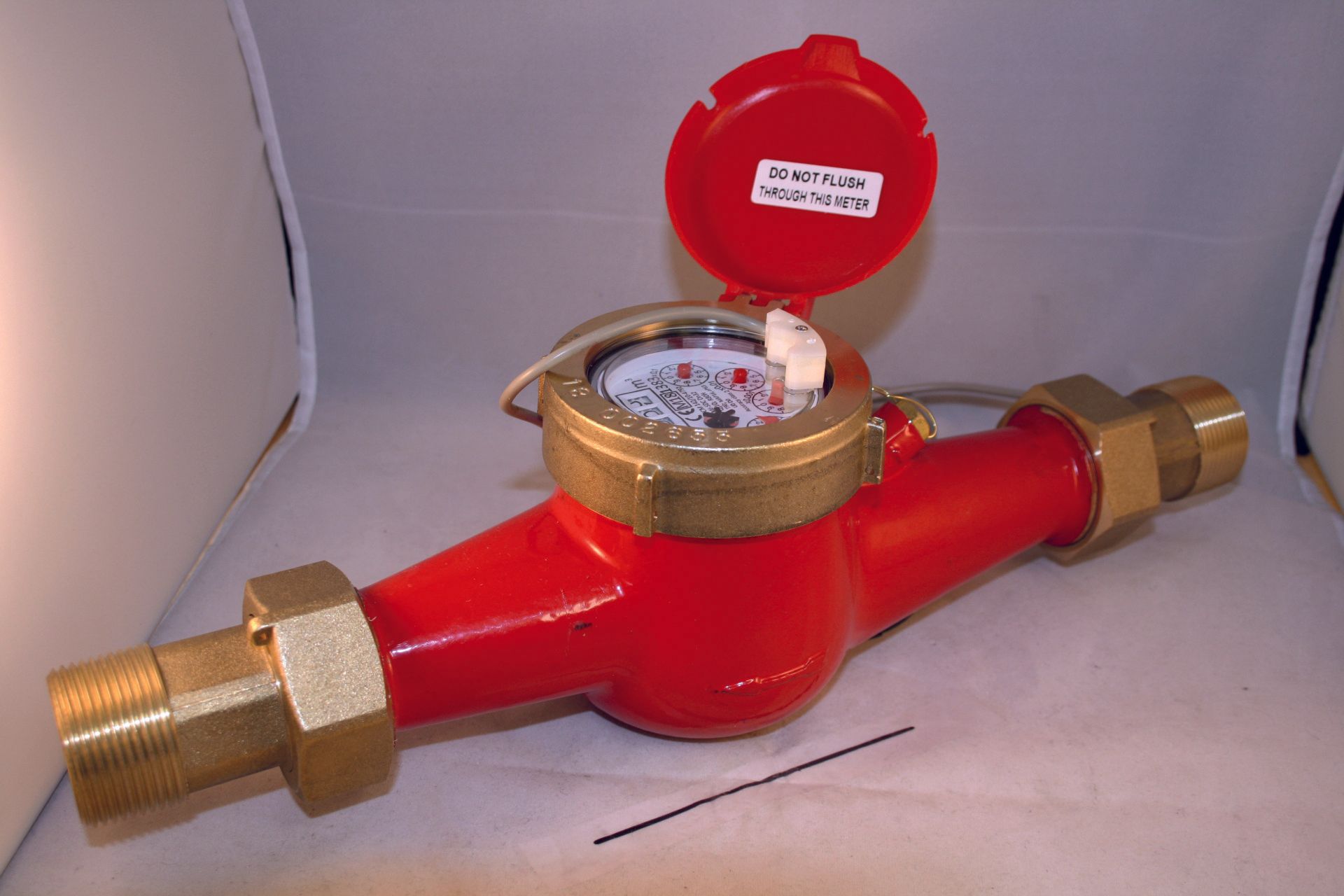

- Screwed meters - WRAS & MID approved (up to 50mm)

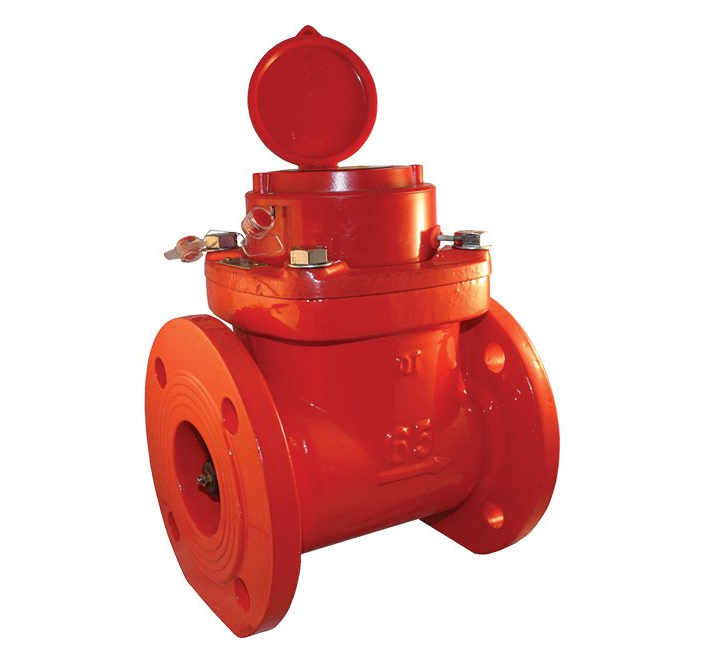

- Flanged meters –ISO4064 Class B
- Suitable for water up to 90°C
- Meters suitable for horizontal & vertical installation
| Part Number | Size (mm) | Connection Type | Nom Flow (m3/h) | Max Flow (m3/h) | Data Sheets |
|---|---|---|---|---|---|
| S15MJH | 15 | Screwed | 2.5 | 3 | Download |
| S20MJH | 20 | Screwed | 4 | 5 | Download |
| S25MJH | 25 | Screwed | 6.3 | 7 | Download |
| S32MJH | 32 | Screwed | 10 | 12 | Download |
| S40MJH | 40 | Screwed | 16 | 20 | Download |
| S50MJH | 50 | Screwed | 25 | 30 | Download |
| F50WH | 50 | Flanged | 40 | 50 | Download |
| F65WH | 65 | Flanged | 63 | 78.7 | Download |
| F80WH | 80 | Flanged | 63 | 78.7 | Download |
| F100WH | 100 | Flanged | 100 | 125 | Download |
| F125WH | 125 | Flanged | 160 | 200 | Download |
| F150WH | 150 | Flanged | 250 | 312 | Download |
| F200WH | 200 | Flanged | 400 | 500 | Download |
Pulse Values
| 15mm - 32mm | 1P | = 10L |
|---|---|---|
| 40mm - 125mm | 1P | = 100L |
| 150mm - 200mm | 1P | = 1000L |
