PRE-ASSEMBLED VALVE SETS
Projects increasingly require pre-assembled solutions to minimise site work. FloControl assembles valve sets that fit directly onto terminal units in the hydronic system of commercial buildings.
FloControl offers off-the-shelf configurations that include the FlowCon PICV as well as valve sets build to project specifications, incorporating any PICV of choice. The Valve Sets are assembled and tested by FloControl in the UK and are available on short lead times.

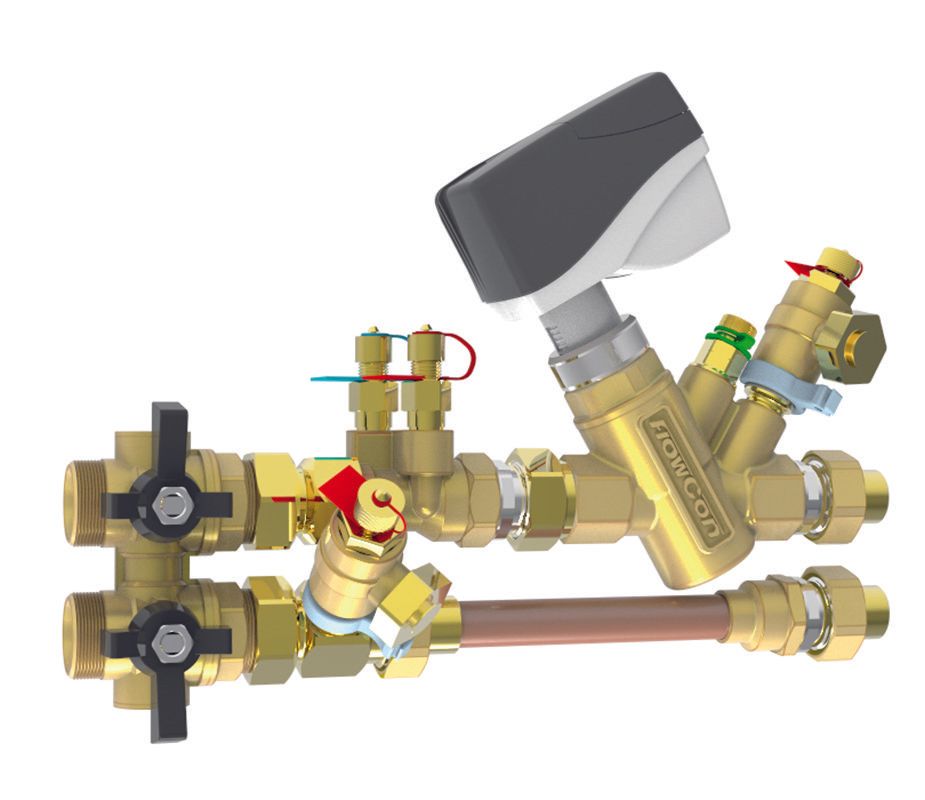

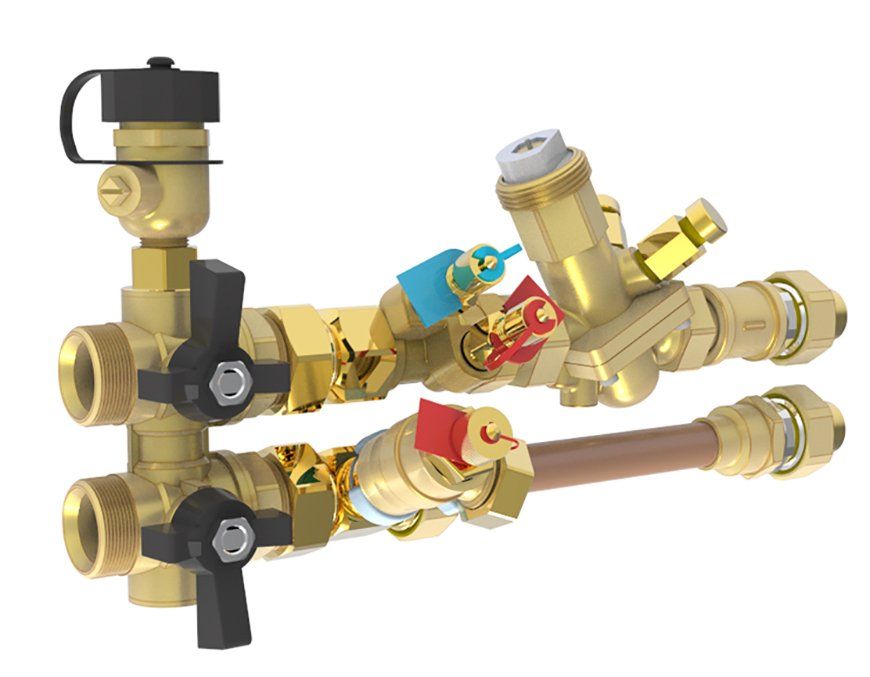

FCU standard configuration with FlowCon PICV
FEATURES
- Supplied in pairs, CHW/LTHW, tested, set and ready to fit
- Fits FCU drip tray with 40mm centres
- Vertical and horizontal configurations
- Union connections on all joints
- Wide range of connections and extensions
- Versatile 5-Position by-Pass with extension options
- BSRIA BG29 compliant
- PICV selection based on terminal unit flow rate
- Removable PICV insert for easy filling, flushing & maintenance
- Technical drawings and technical submission

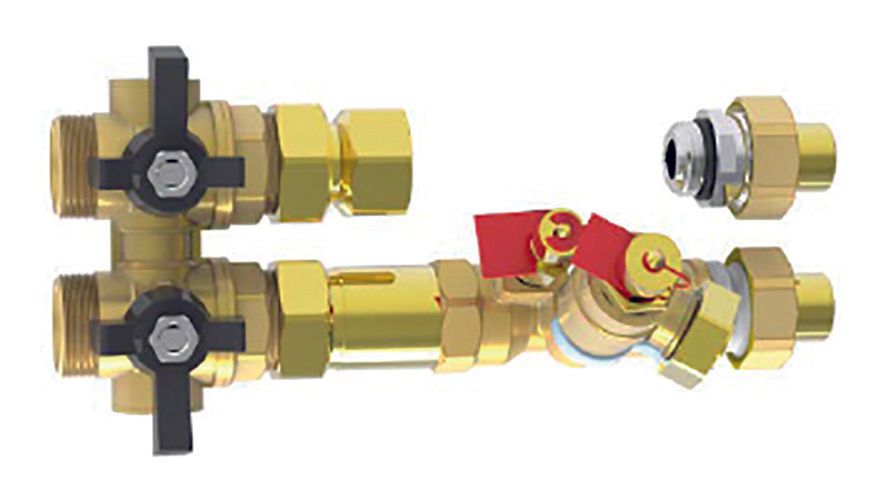

DESCRIPTION
Right Hand PICV FCU Valve Set. Mini Flushing By-Pass. Drain to the Flow Branch. [x PICV] fitted with PT Plug and Combined PT Plug & Drain and [x Metering Station] to the Return Branch. [Solder FCU Connections] included but supplied loose.
| Part Number | Size (mm) | Flowrate (l/s) | Data Sheets |
|---|---|---|---|
| PR.0.1R.15I.S.x | 15 | 0.00482 – 0.160 | Download |
| PR.0.2R.15I.S.0 | 15 | 0.0103 – 0.160 | Download |
| PR.0.3R.15I.S.0 | 15 | 0.0103 – 0.160 | Download |
| PR.0.4R.15I.S.x | 20 | 0.0178 – 0.308 | Download |
| PR.0.5R.15I.S.1HF | 20 | 0.172 – 0.736 | Download |
| PL.0.1R.15I.S.x | 15 | 0.00482 – 0.160 | Download |
| PL.0.2R.15I.S.x | 15 | 0.0103 – 0.160 | Download |
| PL.0.3R.15I.S.x | 15 | 0.0103 – 0.160 | Download |
| PL.0.4R.15I.S.x | 15 | 0.0178 – 0.308 | Download |
| PL.0.5R.15I.S.x | 20 | 0.0178 – 0.308 | Download |
| PL.0.5R.15I.S.1HF | 20 | 0.172 – 0.736 | Download |
