S&S NORTHERN WATER LEAK DETECTION

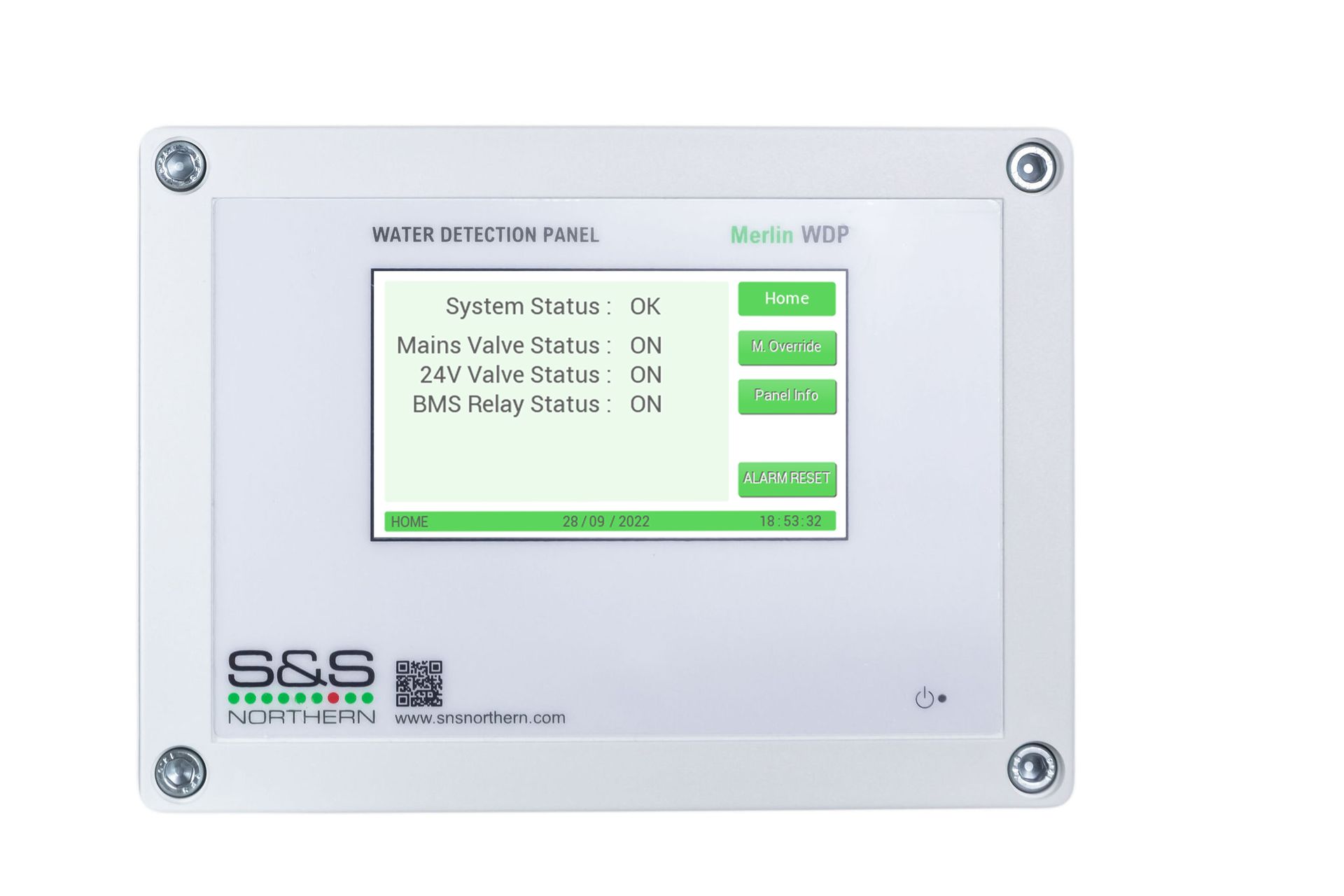

S&S Northern Merlin WDP water leak monitoring system has been specifically designed to help achieve the 2018 BREAAM UK requirements (non-domestic buildings)
Features
- Achieves one credit from BREEAM WAT 03
- Timer & programmable clock built in
- Two stage monitoring for occupied and unoccupied buildings
- BMS output available
- 2 zone input for reading 2x water meters (boundary and incoming)
- Volt free normally closed input for emergency stop buttons, fire alarm & security systems
- Remote sounder strobe output
- 230VAC & 24VDC outputs for water solenoid valves
- We also supply additional accessories such as water meters, water solenoids and PIR sensors

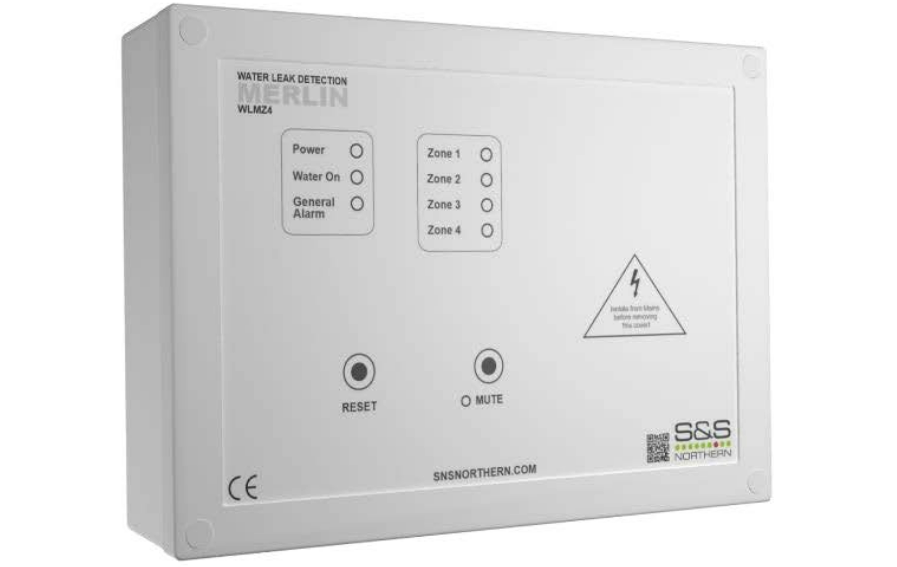

The Merlin WLM rope leak detection system is available in 1, 2 or 4 zones
| Part Number | Description | Datasheet |
|---|---|---|
| MERLIN WDP | WATER LEAK MONITORING SYSTEM | Download |
| Part Number | Description | Dataheets |
|---|---|---|

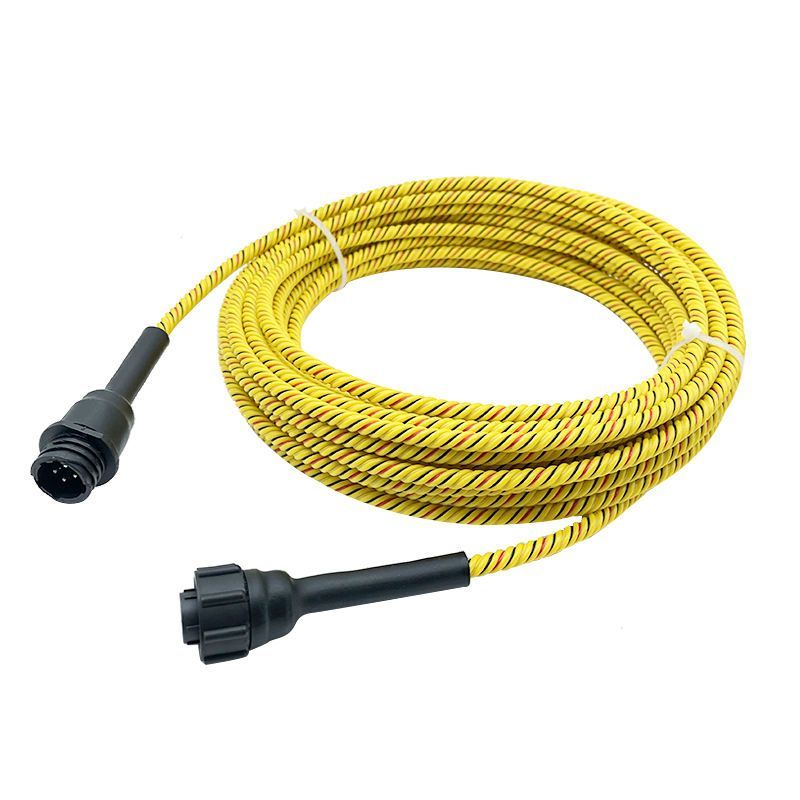

| WLM CABLE - 2m | METRE 2 CORE WATER LEAK CABLE (INCLUDING 2M LEAD WIRE) | Download |
| WLM CABLE - 5m | 5 METRE 2 CORE WATER LEAK CABLE (INCLUDING 2M LEAD WIRE) | Download |
| WLM CABLE - 10m | 10 METRE 2 CORE WATER LEAK CABLE (INCLUDING 2M LEAD WIRE) | Download |
| WLM CABLE - 15m | 15 METRE 2 CORE WATER LEAK CABLE (INCLUDING 2M LEAD WIRE) | Download |
| WLM CABLE - 25m | 25 METRE 2 CORE WATER LEAK CABLE (INCLUDING 2M LEAD WIRE) | Download |
| WLM CABLE -4 CORE - 5m | 5 METRE 4 CORE WATER LEAK CABLE (FAULT DETECTION INCLUDED) | Download |
| WLM CABLE -4 CORE - 10m | 10 METRE 4 CORE WATER LEAK CABLE (FAULT DETECTION INCLUDED) | Download |
| WLM CABLE -4 CORE - 20m | 20 METRE 4 CORE WATER LEAK CABLE (FAULT DETECTION INCLUDED) | Download |
| WLM CABLE -4 CORE - 50m | 50 METRE 4 CORE WATER LEAK CABLE (FAULT DETECTION INCLUDED) | Download |
| WLM CABLE -4 CORE - 100m | 100 METRE 4 CORE WATER LEAK CABLE (FAULT DETECTION INCLUDED) | Download |
| WLM CABLE - LEAD WIRE | LEAD WIRE FOR CONNECTION WITH WATER LEAK CABLE & MERLIN WLD | Download |
| WLM - PUCK/PROBE | WATER LEAK PUCK/PROBE FOR CONNECTION TO MERLIN WLM | Download |
