THYRISTOR/CONTROLLERS
Heat & Combustion’s range of solid state AC controllers are designed to operate single and three phase (3 wire) resistive loads using the burst-pulse principle.
FEATURES
- All solid state design using thyristor modules or ssrs
- Normal line voltage 240V or 415VAC
- Single and two arm control of load circuit (3 arm available on request)
- Input signal 0-10V as standard optional 4-20MA, 0-5V or 5-10V
- CE compliant
- Semi-conductor fuse protection - single phase 9KW and above, 3 phase 28KW and above
- All ratings are at 40 ambient air
- Enclosures IP10
| Part Number | Supply Phase | Max Current - AMP | Max Heating Duty - KW | Dimen (HxWxD) | Data Sheets |
|---|---|---|---|---|---|

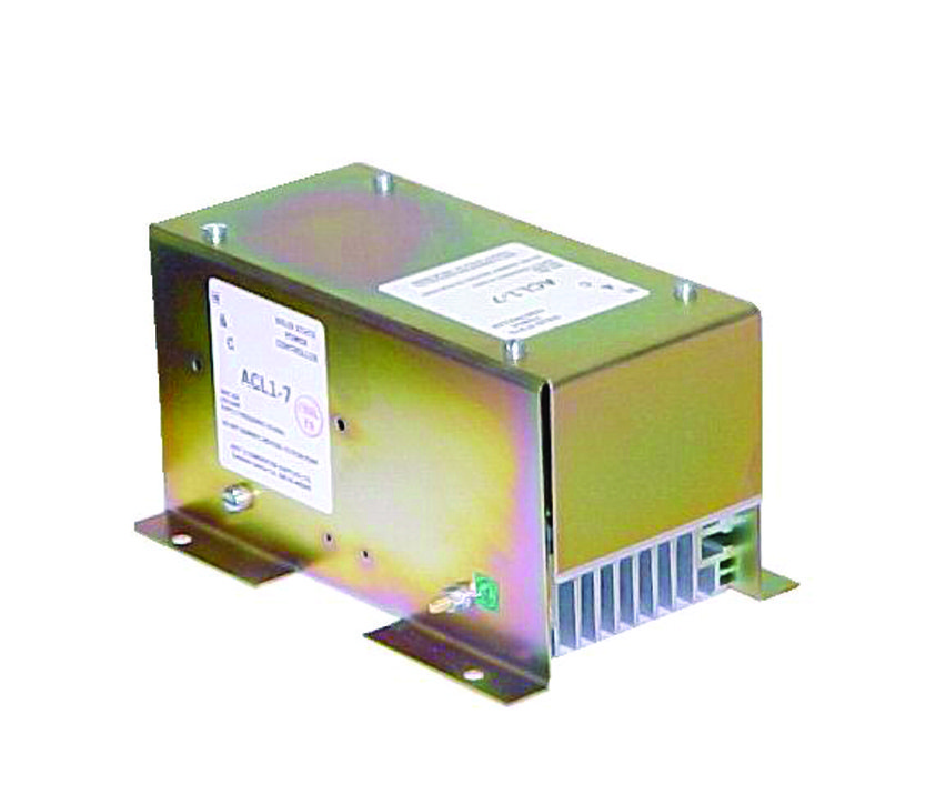

| S1-3DR | SINGLE | 15 | 3.5 | 90 x 91 x 61 | Download |
| ACL1/7 | SINGLE | 30 | 7 | 210 x 136 x 116 | Download |
| AC1/9 | SINGLE | 38 | 9 | 210 x 136 x 112 | Download |
| AC1/15 | SINGLE | 63 | 15 | 210 x 136 x 112 | Download |
| AC1/28 | SINGLE | 117 | 28 | 210 x 154 x 152 | Download |
| ACL3/10 | THREE | 15 | 10 | 210 x 136 x 107 | Download |
| AC3/20N | THREE | 28 | 20 | 210 x 136 x 107 | Download |
| AC3/28 | THREE | 39 | 28 | 210 x 136 x 152 | Download |
| AC3/36 | THREE | 50 | 36 | 210 x 136 x 152 | Download |
| AC3/57 | THREE | 79 | 57 | 210 x 154 x 152 | Download |

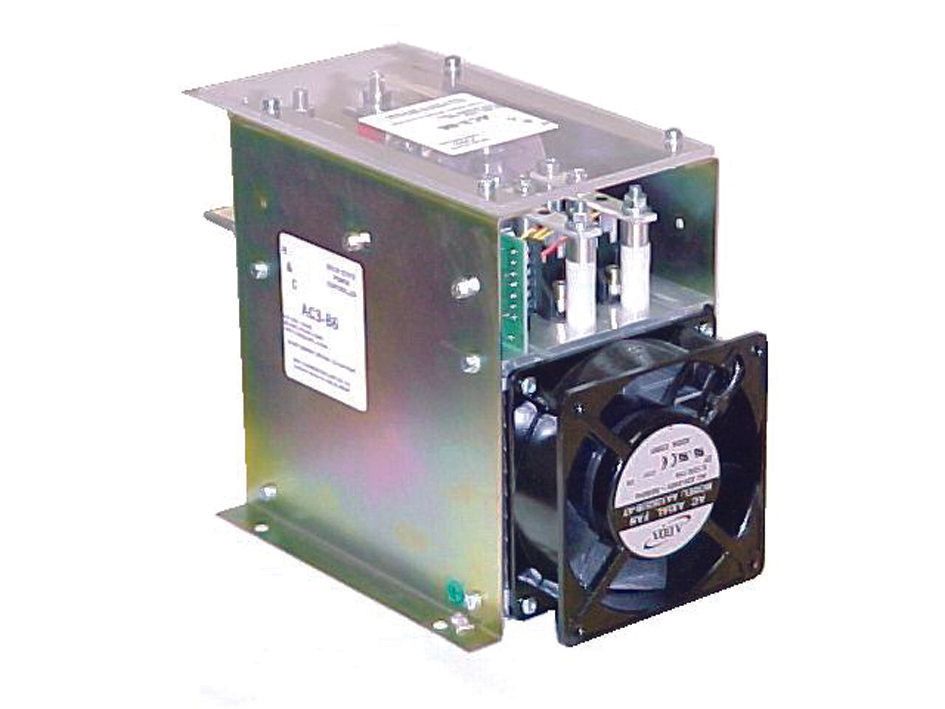

| AC3/86 | THREE | 120 | 86 | 239 x 165 x 205 | Download |
| AC3/138 | THREE | 192 | 138 | 255 x 169 x 152 | Download |
| AC3/172 | THREE | 239 | 172 | 255 x 169 x 229 | Download |
| AC3/200 | THREE | 278 | 200 | 338 x 169 x 287 | Download |
