AXIO WATER LEAK DETECTION MODULES

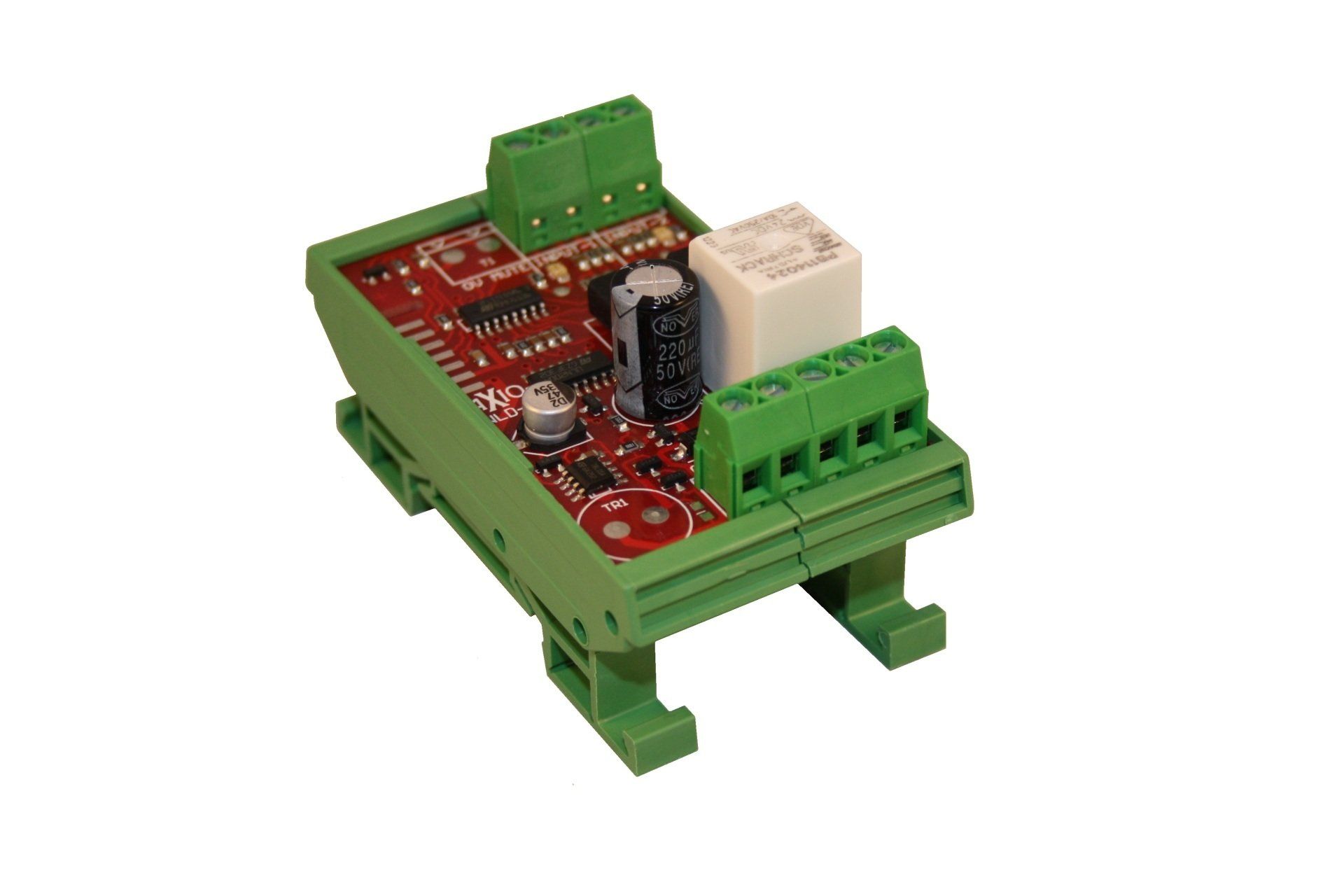

The AX-WLD2 is a range of single and dual zone water detection modules designed for Din Rail mounting. The water leak module can have a total of 200m of cable connected to each input (cable and header). A relay output provides an alarm signal to a remote alarm annunciator or a BMS system. The sensitivity is adjustable to ensure false returns are not given. An optional alarm buzzer can be incorporated.
FEATURES
- A total of 200m cable on each zone
- Adjustable sensitivity on each zone
- Can take inputs from a mixture of cable sensors, rain sensors or point sensors
- Audible alarm option
- LED indication of each channel alarm
- Normally open and closed contacts
- Relay output to BMS or Alarm annunciator
| Part Number | Description | Data Sheets |
|---|---|---|
| AX-WLD2-24 | 24VAC/DC ALARM ONE OR TWO ZONE DETECTION MODULE | Download |
| AX-WLD2-230 | 230V ALARM ONE OR TWO ZONE DETECTION MODULE | Download |
| AX-WLD2-24-A | 24VAC/DC ALARM ONE OR TWO ZONE DETECTION MODULE & ALARM BUZZER | Download |
| AX-WLD2-230-A | 230V ALARM ONE OR TWO ZONE DETECTION MODULE & ALARM BUZZER | Download |

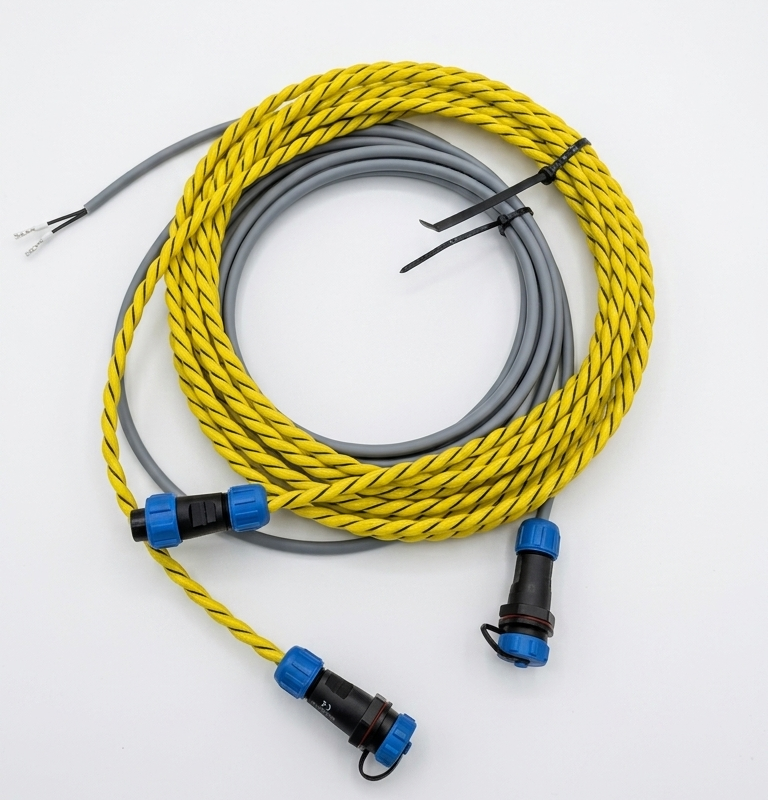

| AX-WCS-5 | CABLE SENSOR FOR WLD, 5M CABLE 3M HEADER | Download |
| AX-WCS-10 | CABLE SENSOR FOR WLD, 10M CABLE 3M HEADER | Download |
| AX-WCS-15 | CABLE SENSOR FOR WLD, 15M CABLE 3M HEADER | Download |
| AX-WCS-20 | CABLE SENSOR FOR WLD, 20M CABLE 3M HEADER | Download |
| AX-WCS-XX | CUSTOMER SPECIFIED CABLE AND HEADER LENGTH | Download |

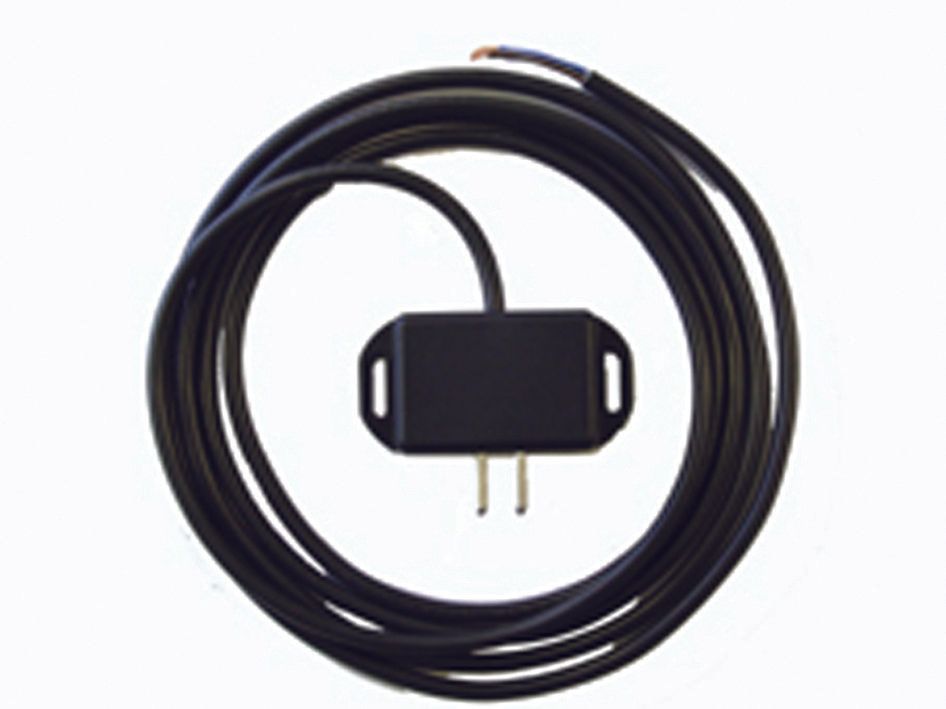

| AX-WPS | POINT SENSOR FOR WLD | Download |

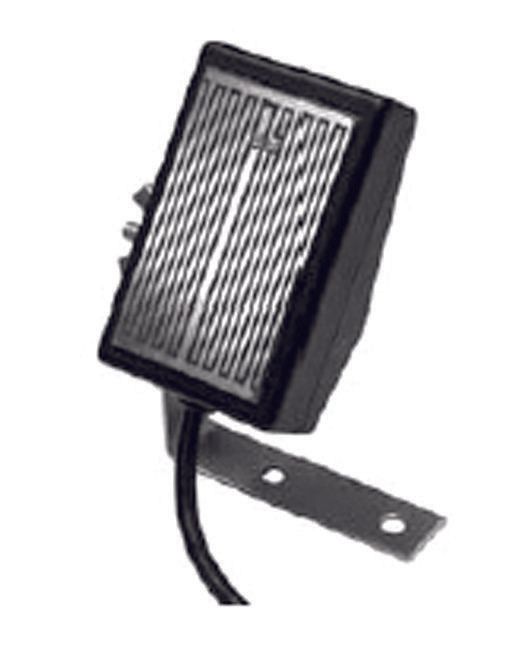

| AX-WRS1 | RAIN SENSOR WITH 1M CABLE FOR WLD | Download |

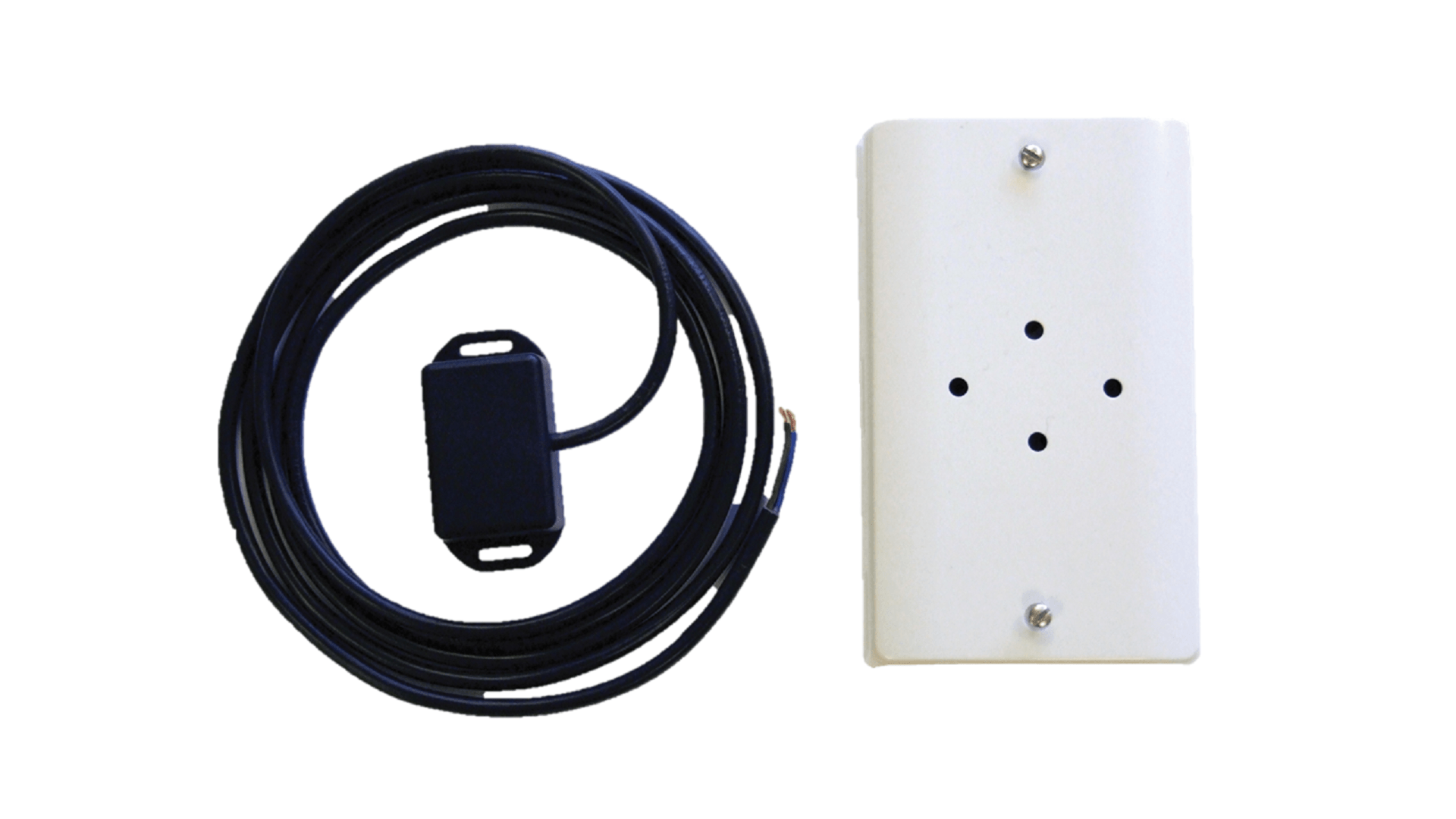

| AX-WLD-DTA | SINGLE ZONE DRIP TRAY VERSION | Download |
| AX-WLD | ENCLOSURE FOR AX-WLD2 | Download |
