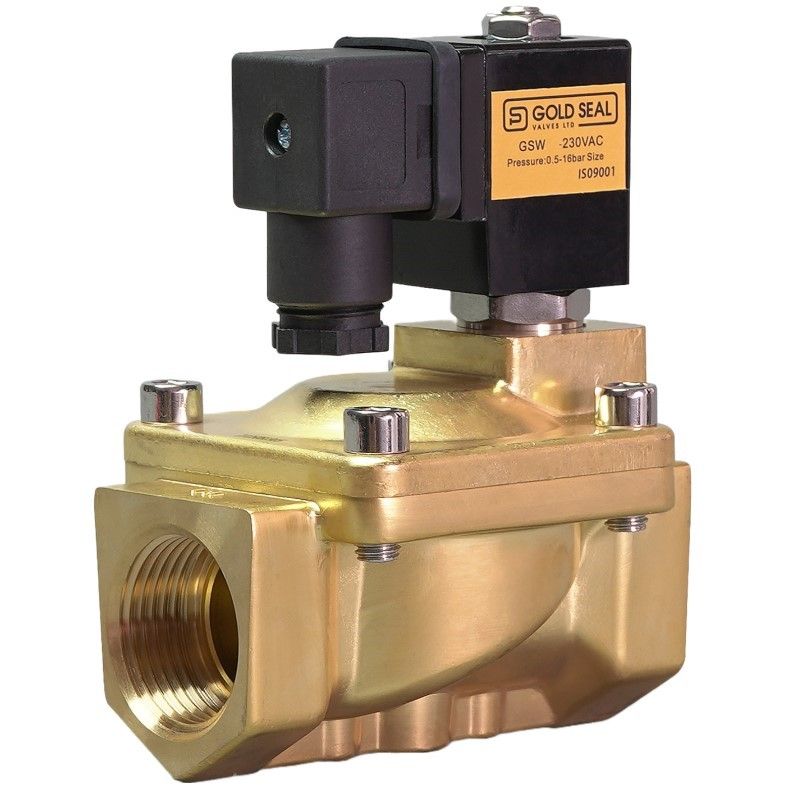

GOLDSEAL WRAS APPROVED SOLENOID VALVES

A WRAS approved range of 2 way normally closed servo-assisted solenoid valves.



FEATURES

  • WRAS approved Solenoid Valves
  • EPDM seal, suitable for temperature up to 120°C
  • Pressure range - 0.5 - 12 bar
  • Normally Closed as standard.

FOR DN65 & ABOVE PLEASE GO TO THE MOTORISED VALVES & ACTUATORS PAGE FOR THE WRAS BUTTERFLY VALVES

DANFOSS AMZ 2 & 3 PORT MOTORISED BALL VALVES
WRAS Approved Solenoid Valves

230V VERSION



Part Number Size (") Voltage Data Sheets
WSV-G-20/230 ¾” 230 Download
WSV-G-25/230 1” 230 Download
WSV-G-32/230 1¼” 230 Download
WSV-G-40/230 1½” 230 Download
WSV-G-50/230 2” 230 Download

24VDC VERSION

Part Number Size (") Voltage Data Sheets
WSV-G-15/24D ½” 24 Download
WSV-G-20/24D ¾” 24 Download
WSV-G-25/24D 1” 24 Download
WSV-G-32/24D 1¼” 24 Download
WSV-G-40/24D 1½” 24 Download
WSV-G-50/24D 2” 24 Download

24VAC VERSION

Part Number Size (") Voltage Data Sheets
WSV-G-15/24A ½” 24 Download
WSV-G-20/24A ¾” 24 Download
WSV-G-25/24A 1” 24 Download
WSV-G-32/24A 1¼” 24 Download
WSV-G-40/24A 1½” 24 Download
WSV-G-50/24A 2” 24 Download

Spare Coils



Part Number Voltage
WSV-G 24 24VAC
WSV-G 230 230VAC
WSV-G 24VDC 24VDC
